A good PCB layout is crucial for the TPA2012D2. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, decoupling capacitors should be placed close to the device.
The gain setting depends on the input signal level and the desired output power. TI provides a gain setting table in the datasheet, but as a rule of thumb, start with a lower gain setting (e.g., 20 dB) and adjust according to your application's requirements.
The maximum power dissipation of the TPA2012D2 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, the TPA2012D2 can be used in a bridged configuration to increase the output power. However, this requires additional external components and careful PCB layout design to ensure proper operation and thermal management.
To filter out noise and EMI, use a combination of decoupling capacitors, ferrite beads, and shielding. Additionally, ensure that the PCB layout is designed to minimize noise coupling and radiation. TI also recommends using a common-mode filter at the input stage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2012D2RTJRG4 Overview

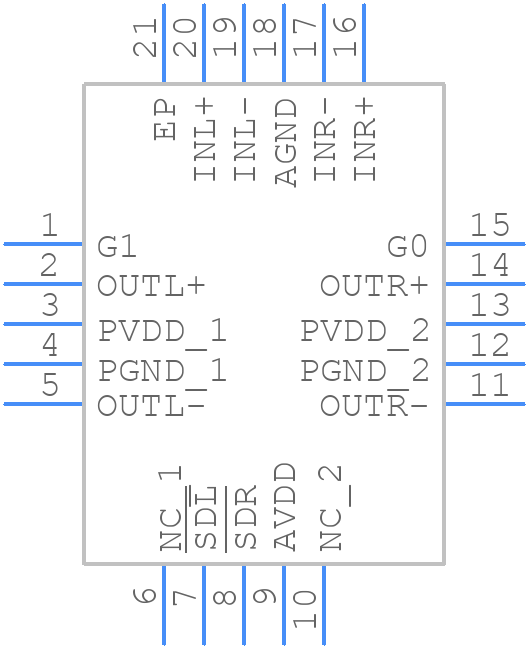

Use the download button to access the TPA2012D2RTJRG4 schematic symbol, PCB footprint, and 3D model.
