Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the signal traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins.
The gain setting depends on the input signal level and the desired output power. The TPA2015D1YZHT has a fixed gain of 20dB, but you can adjust the gain by adding external resistors. Use the gain calculation formula provided in the datasheet to determine the required resistor values for your specific application.
The maximum power dissipation of the TPA2015D1YZHT is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, you should derate the power dissipation based on the actual operating temperature and thermal design of your system.
The TPA2015D1YZHT has built-in overvoltage protection (OVP) and electrostatic discharge (ESD) protection. However, it's still recommended to add external protection components, such as TVS diodes or ESD protection devices, to ensure robust protection against overvoltage and ESD events.
The recommended input coupling capacitor value depends on the input signal frequency and impedance. A general rule of thumb is to use a capacitor value between 1uF to 10uF, with a voltage rating that matches the input signal amplitude. However, you may need to adjust the capacitor value based on your specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2015D1YZHT Overview

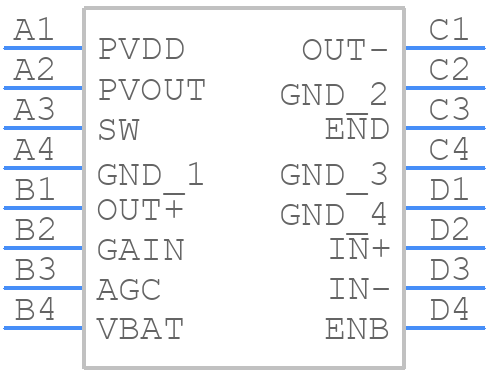

Use the download button to access the TPA2015D1YZHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
