Texas Instruments provides a recommended PCB layout in the TPA3100D2 datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA3100D2IRGZRQ1 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 15W at 25°C ambient temperature, with a thermal resistance of 30°C/W. However, it's essential to perform thermal calculations and simulations to ensure the device operates within safe limits.
Yes, the TPA3100D2IRGZRQ1 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage design, including the output filter and load impedance. TI provides guidance on bridged configurations in the datasheet and application notes.
The TPA3100D2IRGZRQ1 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still essential to add external protection components, such as TVS diodes and voltage regulators, to ensure the device operates within safe voltage limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3100D2IRGZRQ1 Overview

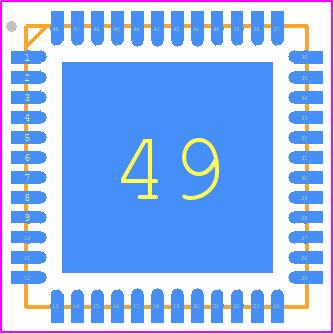

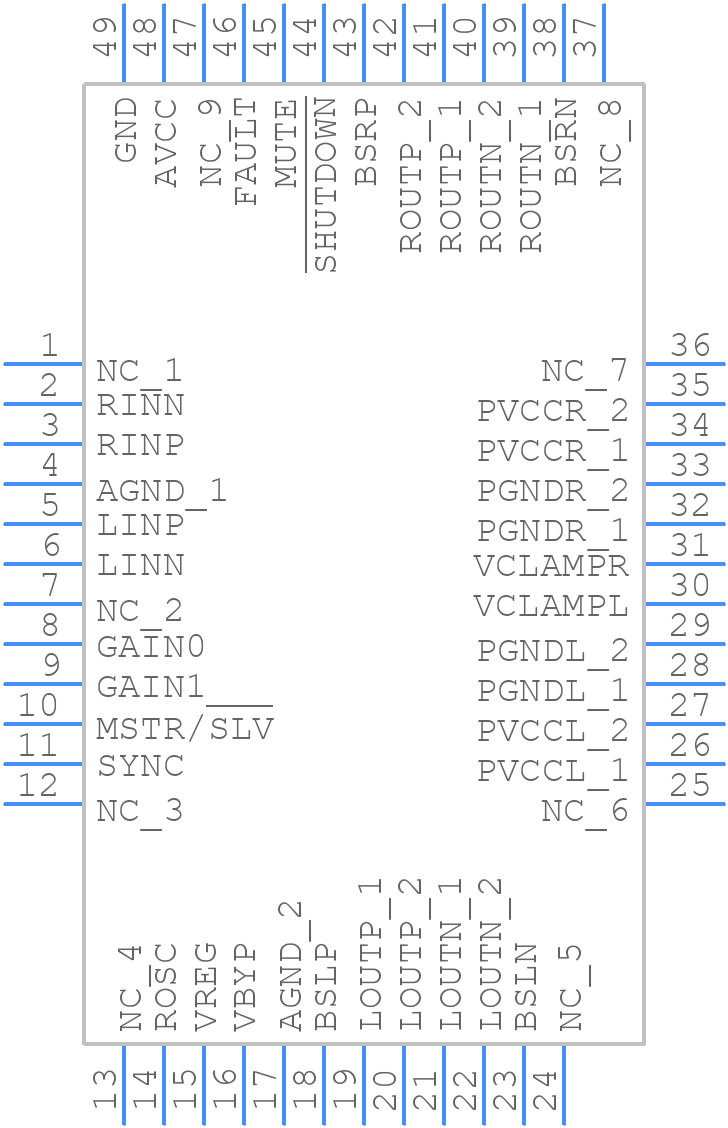

Use the download button to access the TPA3100D2IRGZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
