Texas Instruments provides a recommended PCB layout in the TPA3100D2RGZTG4 datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA3100D2RGZTG4.
The input capacitor values for the TPA3100D2RGZTG4 depend on the input signal frequency, amplitude, and source impedance. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA3100D2RGZTG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 10W at 25°C ambient temperature, with a thermal resistance of 30°C/W. However, it's recommended to perform thermal analysis and simulation to determine the maximum power dissipation for a specific application.
Yes, the TPA3100D2RGZTG4 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, input signal phase, and output load impedance. TI provides a bridged amplifier configuration example in the datasheet, along with guidelines for component selection and PCB layout.
Troubleshooting common issues with the TPA3100D2RGZTG4 requires a systematic approach. Start by verifying the PCB layout, component values, and input signal integrity. Check for oscillation by monitoring the output signal with an oscilloscope, and verify that the input signal is within the recommended amplitude and frequency range. For distortion issues, check the output stage configuration, output load impedance, and power supply voltage. TI also provides a troubleshooting guide in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3100D2RGZTG4 Overview

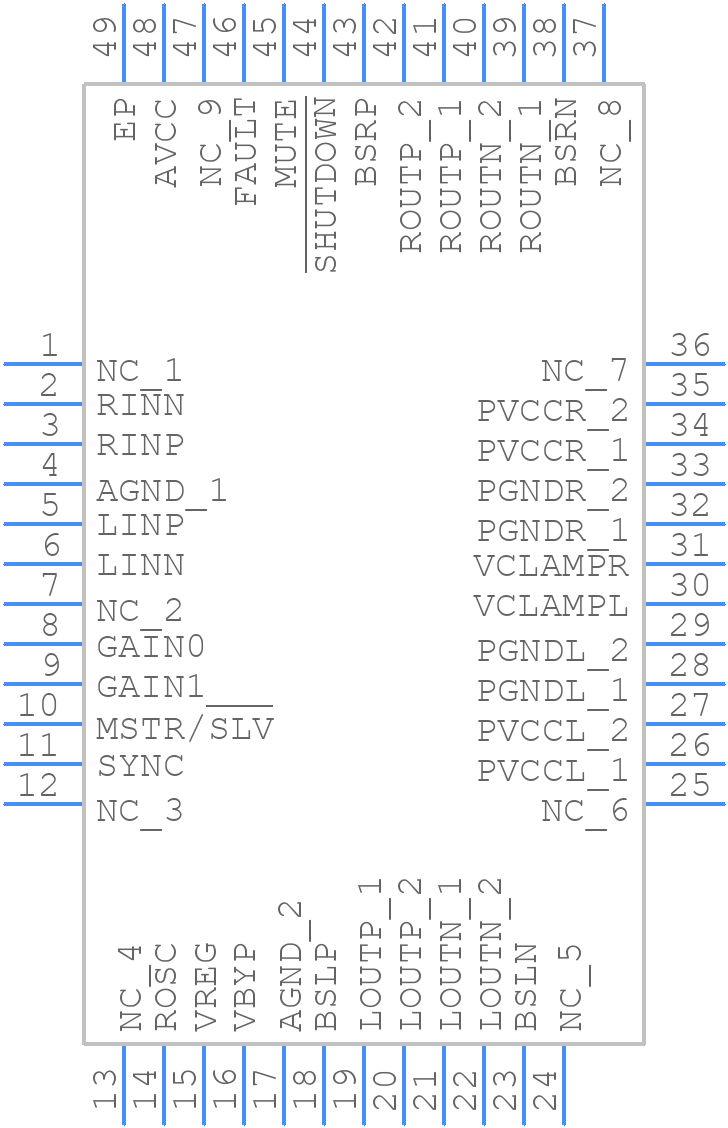

Use the download button to access the TPA3100D2RGZTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
