TPA3100D2RGZR - Texas Instruments

Description: 20-W Stereo Class-D Audio Power Amplifier (TPA3100)

Download TPA3100D2RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

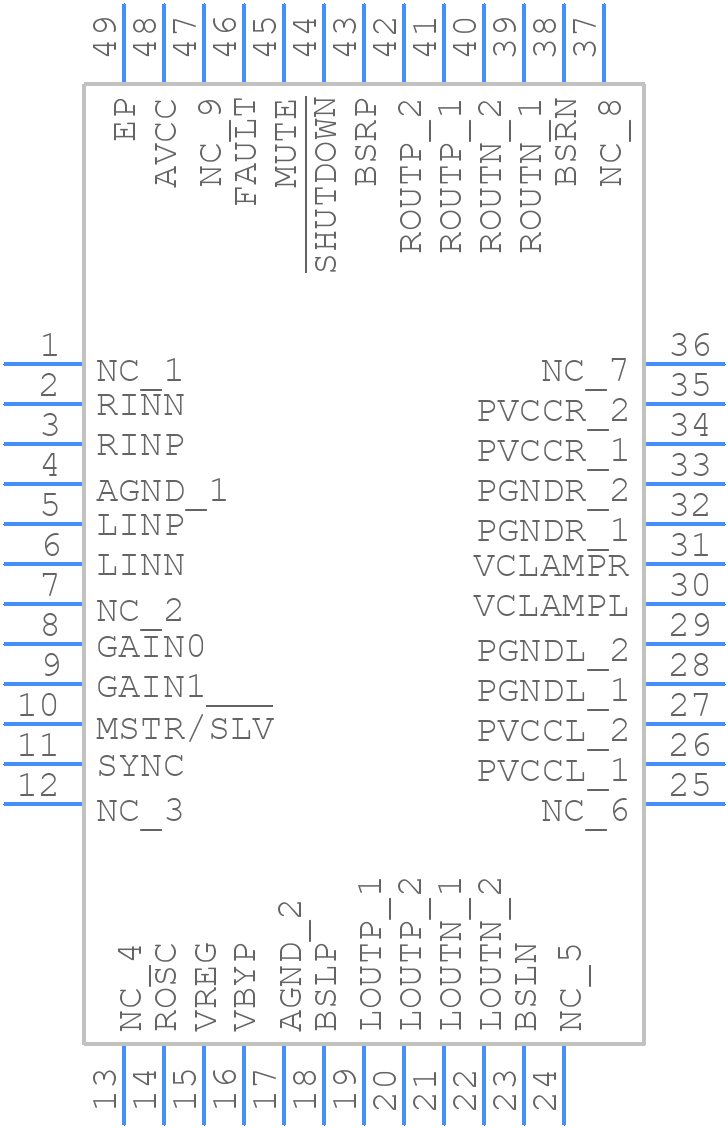

Symbol
TPA3100D2RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3100D2RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A_H=1
click to zoom
3D Models
TPA3100D2RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A_H=1
click to zoom

TPA3100D2RGZR Details

  • Manufacturer Part Number:

    TPA3100D2RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPA3100D2RGZR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3100D2RGZR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level, desired output power, and system impedance. TI provides a gain setting table in the datasheet, and you can also use the TI Audio Amplifier Gain Calculator tool to help select the optimal gain setting.
  • The maximum power dissipation of the TPA3100D2RGZR is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, and you can also use the TI Power Dissipation Calculator tool to estimate the maximum power dissipation.
  • To protect the TPA3100D2RGZR from overheating, ensure good thermal conduction by using a heat sink or a thermally conductive PCB, keep the device away from heat sources, and implement thermal monitoring and shutdown circuits if necessary.
  • The recommended input coupling capacitor value depends on the input signal frequency and impedance. A general rule of thumb is to use a capacitor with a value of 1-10 μF, but TI recommends consulting the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3100D2RGZR Overview

Use the download button to access the TPA3100D2RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
