TPA3118D2QDAPRQ1 - Texas Instruments

Description: 2-Ch, 30-W Analog Input Class-D Audio Amplifier

Download TPA3118D2QDAPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

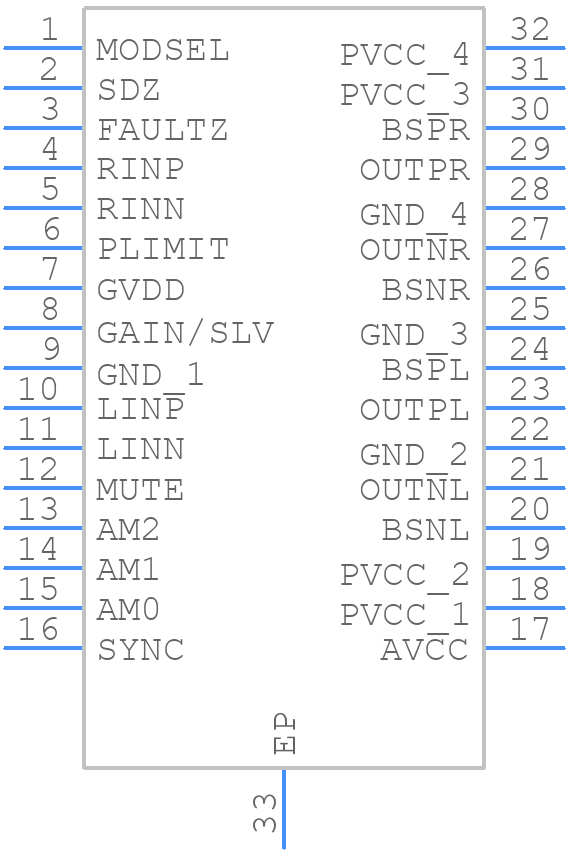

TPA3118D2QDAPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3118D2QDAPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPA3118D2QDAPRQ1-
click to zoom
3D Models
TPA3118D2QDAPRQ1 - Texas Instruments - 3D model - Small Outline Packages - TPA3118D2QDAPRQ1-
click to zoom

TPA3118D2QDAPRQ1 Details

  • Manufacturer Part Number:

    TPA3118D2QDAPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    30 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3118D2QDAPRQ1 Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and GND) to ensure stable operation.
  • The gain setting depends on the input signal level and the desired output power. TI provides a gain calculation formula in the datasheet. For a specific application, you can use the formula to calculate the optimal gain setting or use the TPA3118D2 evaluation module to experiment with different gain settings.
  • The TPA3118D2 can handle up to 20W of continuous power per channel, but this depends on the supply voltage, load impedance, and ambient temperature. Be sure to check the power dissipation calculations in the datasheet to ensure safe operation.
  • Ensure good thermal conduction by using a heat sink or a thermally conductive PCB design. Monitor the device temperature using the thermal shutdown feature (TSD) and implement a thermal protection scheme in your system design.
  • Yes, the TPA3118D2 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the load impedance, supply voltage, and thermal management. Consult the datasheet and application notes for guidance on bridged configurations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3118D2QDAPRQ1 Overview

Use the download button to access the TPA3118D2QDAPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
