SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
1.5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA311DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the signal paths short, using a solid ground plane, and avoiding vias under the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The input capacitor values depend on the input signal frequency and amplitude. A general rule of thumb is to choose a capacitor value that is at least 10 times the input impedance of the amplifier. For example, if the input impedance is 10kΩ, a 100nF capacitor would be a good starting point. It's also important to consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the capacitor.
The maximum power dissipation of the TPA311DGNRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 3.5W at 25°C ambient temperature. However, this value can be derated based on the ambient temperature and the thermal resistance of the PCB. It's recommended to use a thermal pad and a heat sink to improve heat dissipation.
The TPA311DGNRG4 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection circuits, such as a voltage regulator and a voltage supervisor, to ensure that the amplifier is protected from voltage transients and faults. Additionally, it's recommended to use a fuse or a current limiter to protect the amplifier from overcurrent conditions.
The recommended output filter configuration for the TPA311DGNRG4 is a 2nd-order LC filter with a cutoff frequency of around 50kHz to 100kHz. This filter configuration helps to reduce the output noise and distortion. The values of the inductor and capacitor can be calculated based on the desired cutoff frequency and the output impedance of the amplifier.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA311DGNRG4 Overview

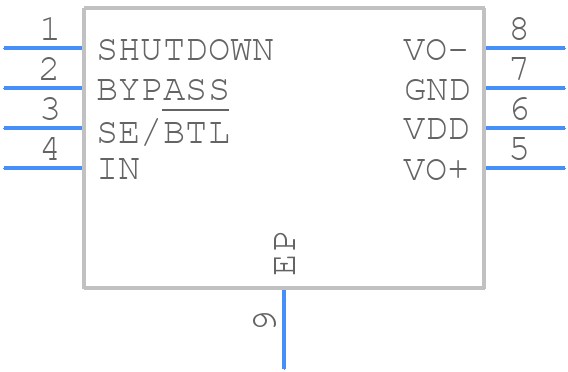

Use the download button to access the TPA311DGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
