SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
30 mA
Supply Voltage-Max (Vsup):
26 V
Supply Voltage-Min (Vsup):
10 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA3121D2PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3121D2PWP datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure optimal performance.
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input signal amplitude. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA3121D2PWP is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 3.5W at 25°C ambient temperature, with a thermal resistance of 30°C/W. However, this value can be derated at higher temperatures.
Yes, the TPA3121D2PWP can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, input signal phase, and output load impedance. TI provides a bridged amplifier configuration example in the datasheet.
The TPA3121D2PWP has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the application. TI recommends using a voltage supervisor or a power-on reset circuit to ensure the device operates within the recommended voltage range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3121D2PWP Overview

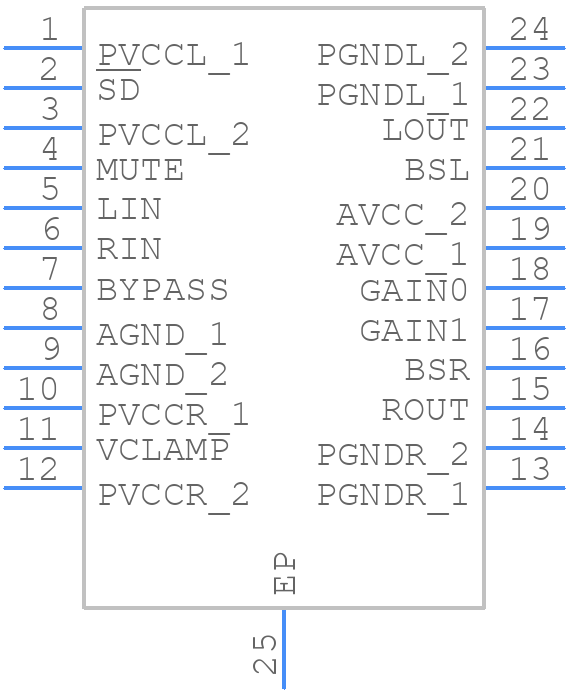

Use the download button to access the TPA3121D2PWP schematic symbol, PCB footprint, and 3D model.
