Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website has a PCB layout guide and a thermal design guide that can be consulted for more information.
The input capacitor should be selected based on the input frequency, impedance, and signal amplitude. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, and a voltage rating that is at least twice the maximum input voltage. The datasheet provides more detailed guidance on input capacitor selection.
The maximum power dissipation of the TPA3121D2PWPG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 15W at an ambient temperature of 25°C, and 10W at an ambient temperature of 85°C. However, it's recommended to perform thermal analysis and simulation to determine the maximum power dissipation for a specific application.
Yes, the TPA3121D2PWPG4 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage design, including the selection of output transistors, and the implementation of proper thermal management and protection circuits.
The TPA3121D2PWPG4 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the application. The datasheet provides guidance on implementing external OVP and UVP circuits, and TI also provides application notes and design guides for overvoltage and undervoltage protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3121D2PWPG4 Overview

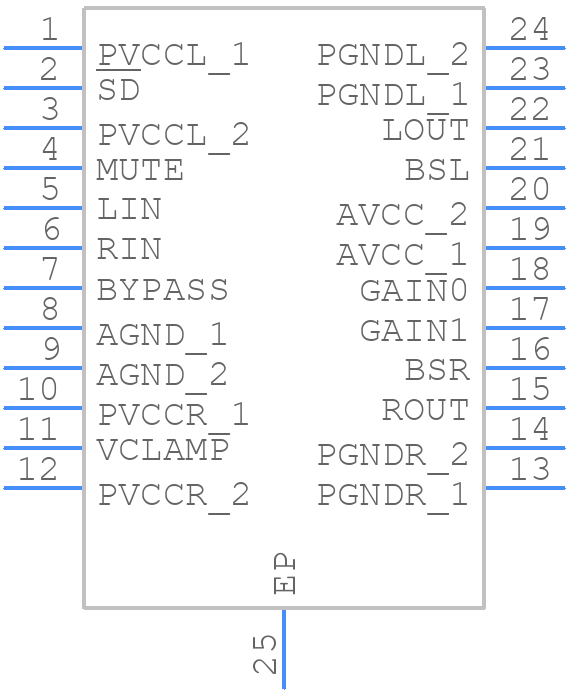

Use the download button to access the TPA3121D2PWPG4 schematic symbol, PCB footprint, and 3D model.
