TPA3124D2PWPR - Texas Instruments

Description: 15-W Stereo Class-D Audio Power Amplifier with SE Outputs and Fast Mute Time (TPA3124)

Download TPA3124D2PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

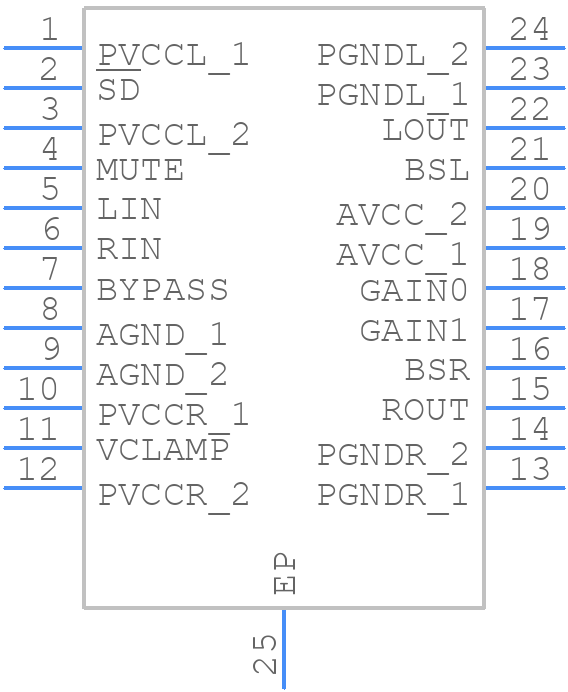

TPA3124D2PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3124D2PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G24)_2
click to zoom
3D Models
TPA3124D2PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G24)_2
click to zoom

TPA3124D2PWPR Details

  • Manufacturer Part Number:

    TPA3124D2PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    92 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    15 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPA3124D2PWPR Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and PVDD) to ensure stable operation.
  • The gain setting depends on the specific application requirements. TI provides a gain calculation formula in the datasheet. For a more accurate calculation, use the TI Audio Amplifier Gain Calculator tool or consult with a TI engineer.
  • The TPA3124D2PWPR can handle up to 20W of continuous power per channel into a 4Ω load. However, the actual power handling capability depends on the thermal design and heat sinking of the system.
  • To ensure EMI compliance, follow proper PCB layout guidelines, use a shielded enclosure, and add EMI filters (e.g., ferrite beads, common-mode chokes) to the power and audio lines. Consult the TI application note 'EMI Compliance for Audio Amplifiers' for more information.
  • Use a heat sink with a thermal resistance of ≤ 10°C/W, and ensure good airflow around the device. Apply thermal interface material (TIM) between the device and heat sink. Consult the TI application note 'Thermal Design Considerations for Audio Amplifiers' for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3124D2PWPR Overview

Use the download button to access the TPA3124D2PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers
