A good PCB layout for the TPA3132D2RHBR involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The gain setting depends on the input signal level, desired output power, and system impedance. TI provides a gain calculation formula in the datasheet. You can also use TI's online gain calculator tool or consult with a TI engineer for guidance.
The maximum power dissipation of the TPA3132D2RHBR is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a thermal derating curve in the datasheet to help estimate the maximum power dissipation for a given application.
Yes, the TPA3132D2RHBR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage, power supply, and thermal management. TI provides guidance on bridged configurations in the datasheet and application notes.
The TPA3132D2RHBR has built-in overcurrent protection, but it's still important to add external protection circuitry to prevent overvoltage and overcurrent conditions. TI recommends using voltage regulators, current limiters, and fuses to ensure safe operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3132D2RHBR Overview

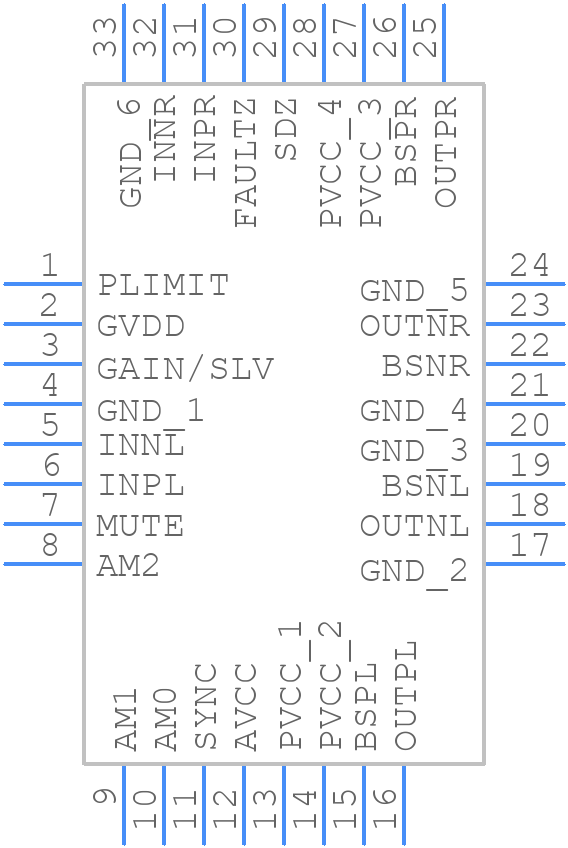

Use the download button to access the TPA3132D2RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
