SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
14.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA3136D2PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3136D2PWP datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure optimal thermal performance.
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose a capacitor value that is at least 10 times the input impedance of the amplifier. TI also provides a capacitor selection guide in the datasheet to help with this process.
The maximum power dissipation of the TPA3136D2PWP is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 3.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
Yes, the TPA3136D2PWP can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, PCB layout, and thermal management to ensure reliable operation.
The TPA3136D2PWP has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the specific application requirements. TI recommends using a voltage supervisor or a power-on reset circuit to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3136D2PWP Overview

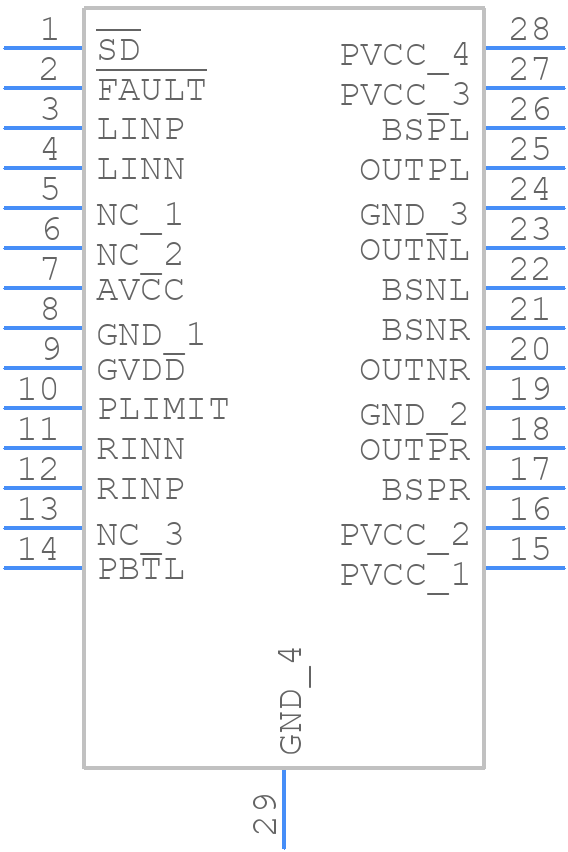

Use the download button to access the TPA3136D2PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
