SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max:
40 mA
Supply Voltage-Max (Vsup):
14.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA3137D2PWPR Frequently Asked Questions (FAQs)
A good PCB layout for the TPA3137D2PWPR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device, and keep the PCB layer stack-up symmetrical to minimize thermal gradients.
The output filter components (L, C, and R) should be chosen based on the desired cutoff frequency, output impedance, and power handling. TI provides a Filter Design Tool to help with component selection. Additionally, consider the device's output impedance, load impedance, and desired frequency response when selecting components.
For optimal thermal performance, ensure good thermal contact between the device and the heat sink or thermal pad. Apply a thin layer of thermal interface material (TIM) to fill gaps. Keep the heat sink or thermal pad clean and free of debris. Consider the device's power dissipation, ambient temperature, and airflow when designing the thermal solution.
To minimize EMI, use a multi-layer PCB with a solid ground plane, and route high-frequency signals on inner layers. Keep the device's power supply and output traces short and away from sensitive analog signals. Use shielding, filtering, and decoupling capacitors as needed. Follow good PCB layout practices, such as avoiding parallel signal traces and using differential signaling.
Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Place decoupling capacitors close to the device's power pins, and use a low-ESR capacitor (e.g., 10 μF) in parallel with a high-frequency capacitor (e.g., 100 nF). Add a ferrite bead or a power inductor in series with the power supply to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3137D2PWPR Overview

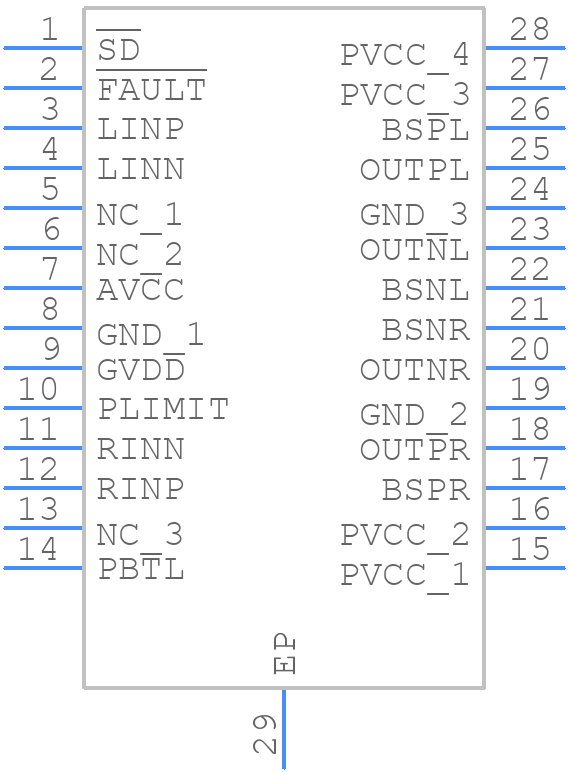

Use the download button to access the TPA3137D2PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
