A good PCB layout for the TPA3139D2RGER involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The gain setting depends on the input signal level, desired output power, and system impedance. TI provides a gain setting table in the datasheet, and you can also use the WEBENCH amplifier designer tool to help select the optimal gain setting.
The maximum power dissipation of the TPA3139D2RGER is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, and you can also use the thermal calculator tool on the TI website.
To minimize EMI, use a common-mode filter, such as a ferrite bead or a common-mode choke, on the input lines. Additionally, use a shielded cable or a twisted pair for the input signal, and keep the amplifier away from other noise sources.
The recommended input capacitor value depends on the input frequency and impedance. A general rule of thumb is to use a capacitor with a value of 10-100 nF, but TI recommends consulting the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3139D2RGER Overview

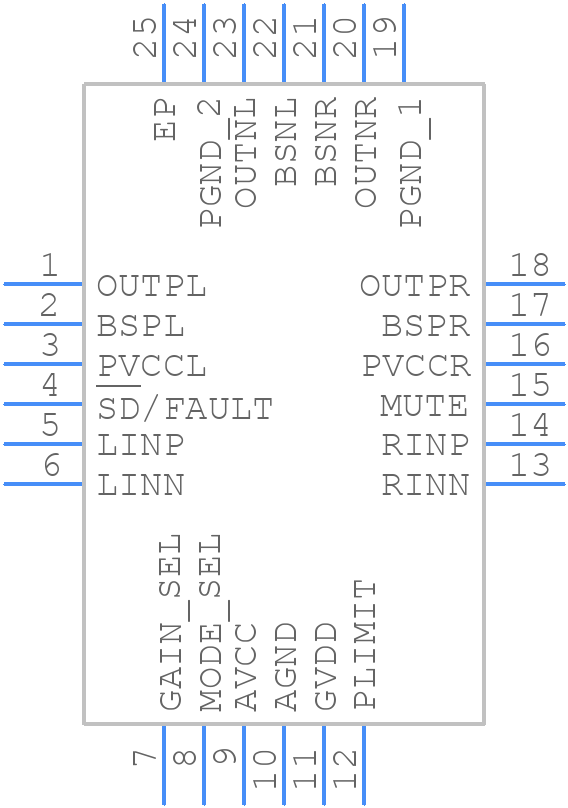

Use the download button to access the TPA3139D2RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
