TPA3156D2DAD - Texas Instruments

Description: TPA3156D2 - 2x70-W, 4.5V-26V, Analog Input, Class-D Amplifier With Low Idle Power Dissipation

Download TPA3156D2DAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

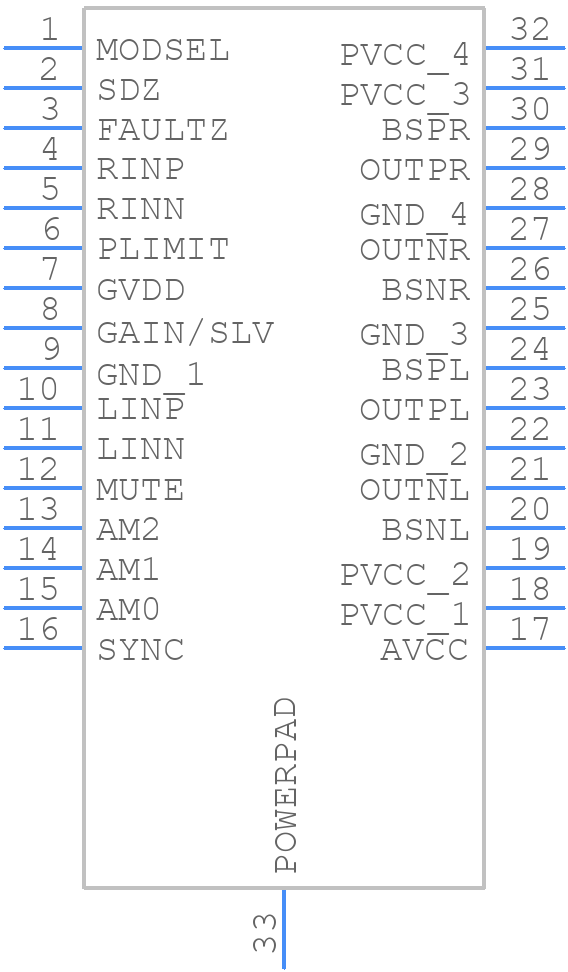

TPA3156D2DAD - Texas Instruments - PCB symbol
