SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPA3220DDW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3220DDW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA3220DDW depends on the specific requirements of your application. You can use the gain selection table in the datasheet to determine the appropriate gain setting based on the input voltage, output voltage, and desired output power. You can also use the TPA3220DDW evaluation module to experiment with different gain settings and find the optimal configuration for your application.
The maximum power dissipation of the TPA3220DDW depends on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 15W at an ambient temperature of 25°C. However, this value can be derated based on the thermal resistance of the PCB and the ambient temperature. It's essential to ensure that the device operates within the recommended power dissipation limits to prevent overheating and ensure reliability.
The TPA3220DDW has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits that prevent the device from operating outside of its recommended voltage range. However, it's still important to add external protection components, such as voltage regulators and TVS diodes, to ensure that the device is protected from voltage transients and surges. Additionally, you can use a voltage supervisor IC to monitor the supply voltage and reset the device in case of an overvoltage or undervoltage condition.
The recommended input capacitor value for the TPA3220DDW depends on the input frequency and the desired noise rejection. According to the datasheet, a 10uF to 22uF ceramic capacitor is recommended for most applications. However, you may need to use a larger or smaller capacitor value depending on your specific requirements. It's essential to ensure that the input capacitor is properly sized to prevent noise and oscillations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3220DDW Overview

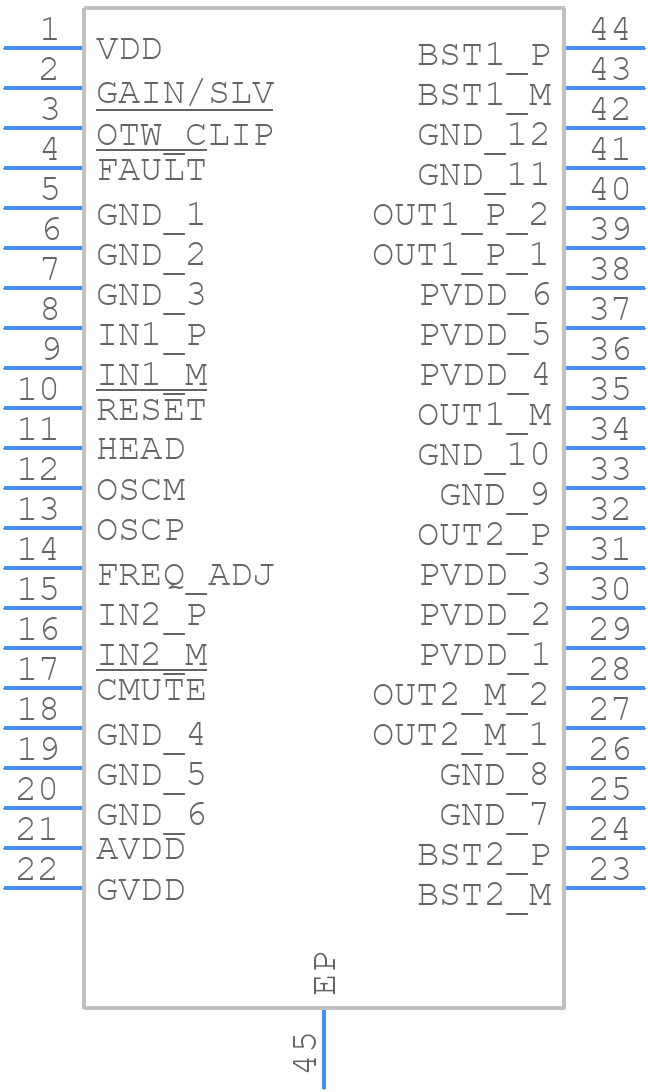

Use the download button to access the TPA3220DDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
