SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
30 V
Supply Voltage-Min (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPA3221DDVR Frequently Asked Questions (FAQs)
A good PCB layout for the TPA3221DDVR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The gain setting depends on the input signal level and the desired output power. The TPA3221DDVR has a gain range of 20 dB to 30 dB. For low-level inputs, a higher gain setting may be needed, while for high-level inputs, a lower gain setting may be required. Consult the datasheet and application notes for more information.
The maximum power dissipation of the TPA3221DDVR is 2.5 W. This is dependent on the ambient temperature, PCB layout, and thermal management. Ensure proper heat sinking and thermal design to prevent overheating.
Yes, the TPA3221DDVR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage, power supply, and thermal management. Consult the datasheet and application notes for more information.
The recommended power supply voltage for the TPA3221DDVR is 12 V to 15 V. However, the device can operate from 9 V to 15 V. Ensure the power supply is well-regulated and filtered to prevent noise and hum.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3221DDVR Overview

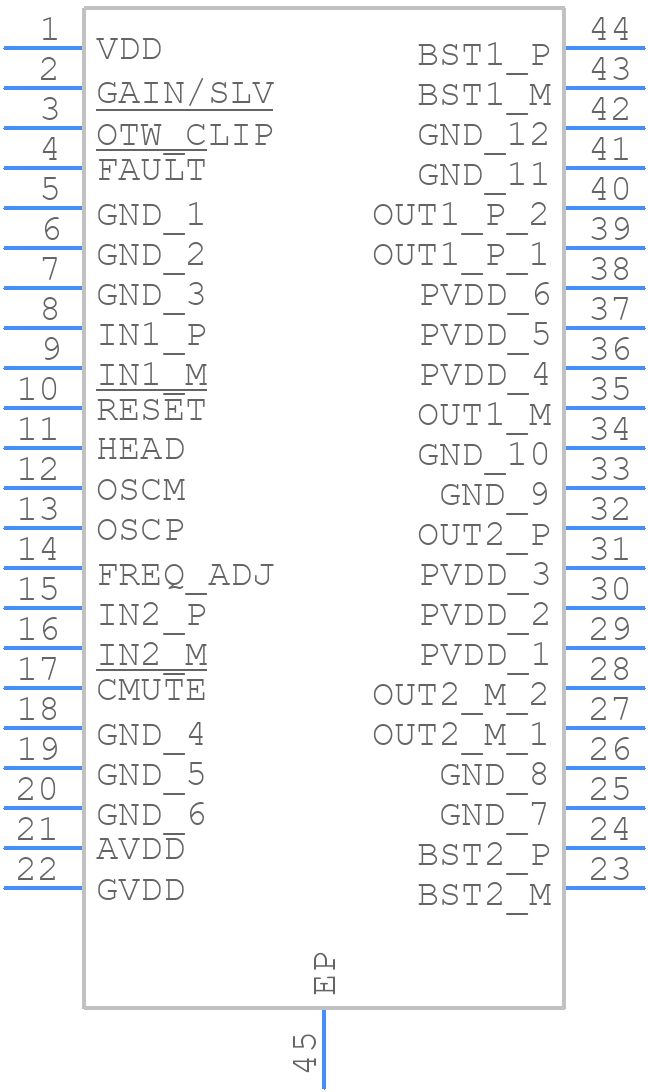

Use the download button to access the TPA3221DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
