TPA3244DDWR - Texas Instruments

Description: 60W Stereo / 110W Peak PurePath™ Ultra-HD Analog-In, Pad-Down Class-D Amplifier

Download TPA3244DDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

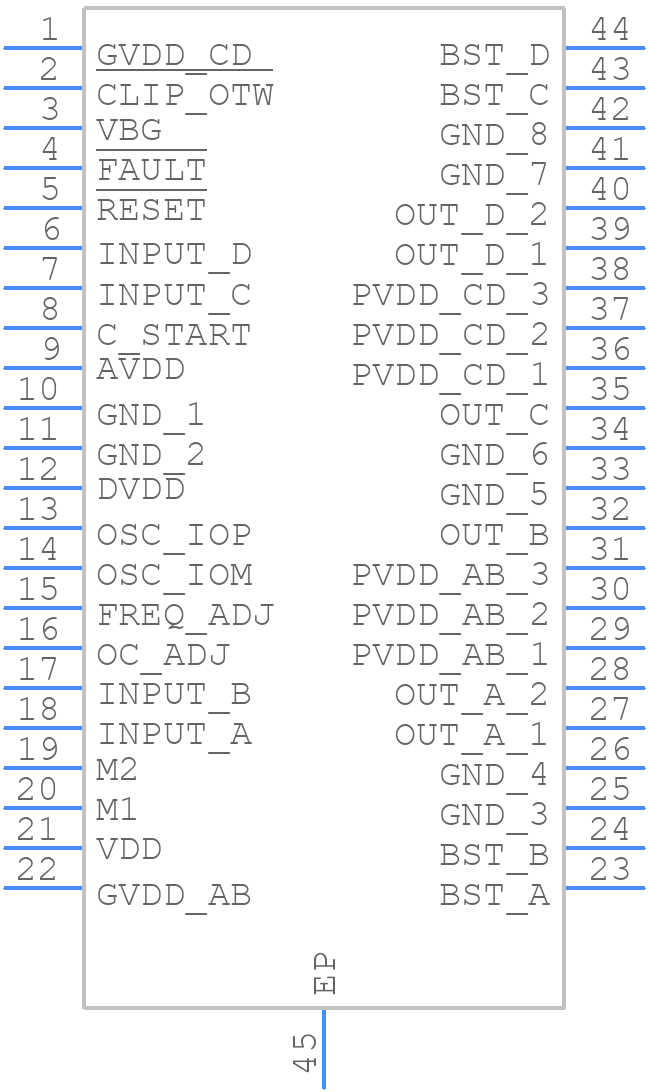

TPA3244DDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3244DDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPA3244DDWR
click to zoom
3D Models
TPA3244DDWR - Texas Instruments - 3D model - Small Outline Packages - TPA3244DDWR
click to zoom

TPA3244DDWR Details

  • Manufacturer Part Number:

    TPA3244DDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-11-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    110 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    100 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3244DDWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3244DDWR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the specific application requirements. The TPA3244DDWR has a gain range of 6 dB to 30 dB. Consider the input signal level, desired output power, and noise requirements to select the optimal gain setting. TI provides a gain calculation tool and application notes to help with this process.
  • The maximum power dissipation of the TPA3244DDWR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this can be derated based on the specific application conditions.
  • The TPA3244DDWR has internal overvoltage protection, but it's still important to follow proper PCB design and handling practices to prevent ESD damage. Use ESD-safe handling and storage procedures, and consider adding external protection components such as TVS diodes or zener diodes to protect against overvoltage events.
  • TI recommends using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed close to the device's power pins. This helps to filter out noise and ensure stable operation.
