TPA3250D2DDWR - Texas Instruments

Description: 70W Stereo / 130W Peak PurePath™ Ultra-HD, Analog-In, Pad-Down Class-D Amplifier

Download TPA3250D2DDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

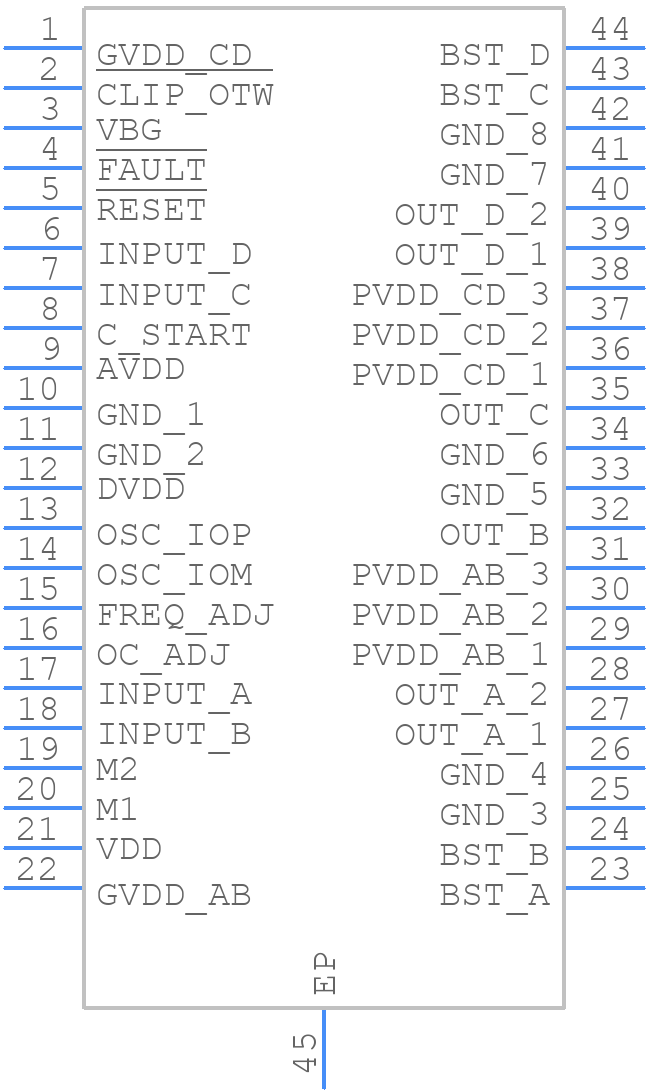

TPA3250D2DDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3250D2DDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDV0044D
click to zoom
3D Models
TPA3250D2DDWR - Texas Instruments - 3D model - Small Outline Packages - DDV0044D
click to zoom

TPA3250D2DDWR Details

  • Manufacturer Part Number:

    TPA3250D2DDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    110 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    130 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3250D2DDWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3250D2DDWR involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the bottom of the package. TI also recommends using thermal interface material (TIM) to improve heat transfer.
  • The maximum power supply voltage for the TPA3250D2DDWR is 36V. Exceeding this voltage can damage the device.
  • Use a voltage regulator or a voltage supervisor to regulate the power supply voltage and prevent overvoltage and undervoltage conditions. TI also recommends using a power-on reset (POR) circuit to ensure the device is properly reset during power-up.
  • The recommended input and output coupling capacitor value is 10uF to 22uF, depending on the specific application and frequency response requirements. TI provides more information on capacitor selection in the datasheet and application notes.
