SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPA3250D2DDW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3250D2DDW evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to minimize noise and ensure optimal performance.
The input capacitor should be selected based on the input signal frequency, amplitude, and impedance. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, and a voltage rating that exceeds the maximum input signal amplitude. Additionally, the capacitor should have a low equivalent series resistance (ESR) to minimize signal attenuation.
The maximum power dissipation of the TPA3250D2DDW is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 15W at 25°C ambient temperature, but this can be derated to 10W at 50°C ambient temperature. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Yes, the TPA3250D2DDW can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, including the output inductor and capacitor values, to ensure stable operation and prevent oscillations. Texas Instruments provides application notes and design guides to help with bridged amplifier design.
Troubleshooting amplifier issues often requires a systematic approach. Start by verifying the power supply voltage, input signal integrity, and output stage configuration. Use oscilloscopes and spectrum analyzers to measure the output signal and identify any anomalies. Check for layout-related issues, such as parasitic inductance or capacitance, and ensure that the amplifier is properly decoupled. Texas Instruments also provides troubleshooting guides and application notes to help identify and resolve common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3250D2DDW Overview

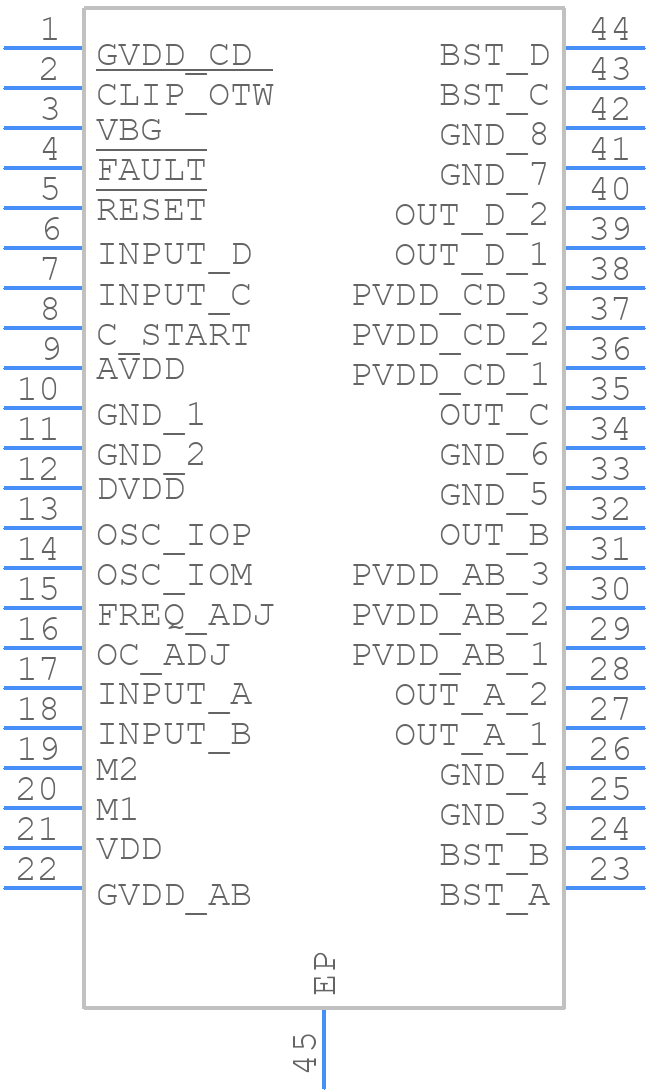

Use the download button to access the TPA3250D2DDW schematic symbol, PCB footprint, and 3D model.
