TPA3255DDV - Texas Instruments

Description: Audio Amplifiers 325-W Stereo High-Performance, High-Definition, Class-D Amplifier 44-HTSSOP 0 to 70

Download TPA3255DDV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

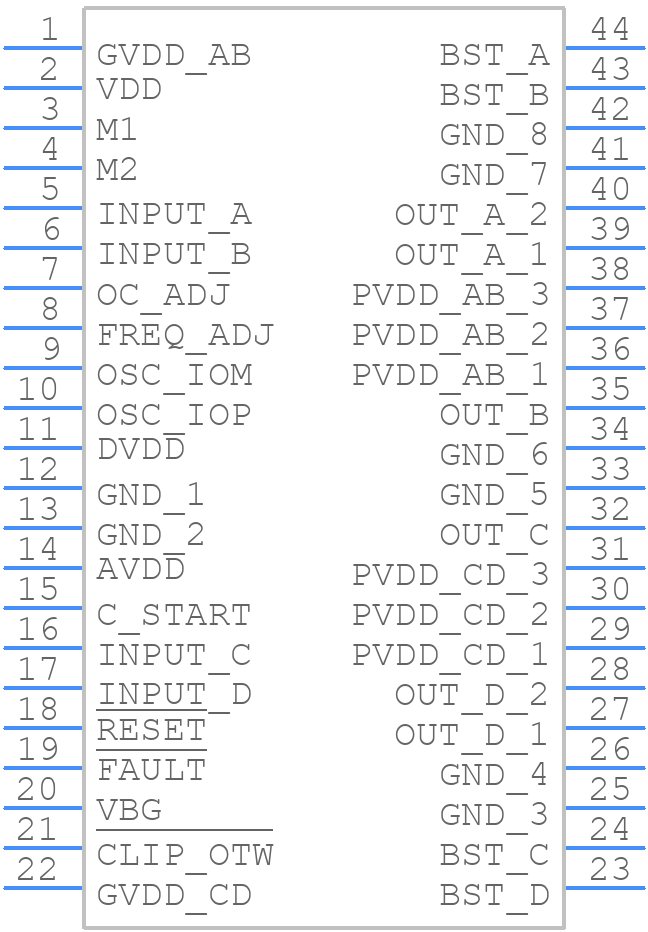

TPA3255DDV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3255DDV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDV0044D
click to zoom
3D Models
TPA3255DDV - Texas Instruments - 3D model - Small Outline Packages - DDV0044D
click to zoom

TPA3255DDV Details

  • Manufacturer Part Number:

    TPA3255DDV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-09-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    21.5 dB

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    112 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    315 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3255DDV Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3255DDV involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting for the TPA3255DDV depends on the specific application requirements. A good starting point is to use the recommended gain settings in the datasheet, and then adjust based on the desired output power and THD. TI also provides a gain calculator tool to help with this process.
  • The maximum power dissipation for the TPA3255DDV is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a thermal derating curve in the datasheet to help determine the maximum power dissipation for a given application.
  • The TPA3255DDV has built-in overvoltage protection, but it's still important to add external protection circuitry to prevent damage from voltage transients. A voltage supervisor or reset IC can be used to monitor the supply voltage and reset the device if it falls outside the recommended range.
  • The recommended heatsink for the TPA3255DDV depends on the specific application and power dissipation requirements. TI provides thermal resistance data in the datasheet to help determine the required heatsink size and type. A good starting point is to use a heatsink with a thermal resistance of 10°C/W or lower.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3255DDV Overview

Use the download button to access the TPA3255DDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
