Texas Instruments provides a recommended PCB layout in the TPA4411RTJR datasheet (Figure 23) and in the application note SLVAU65. It is essential to follow this layout to ensure optimal thermal performance and minimize thermal resistance.
The input capacitor values depend on the input impedance, frequency response, and noise requirements of your application. TI provides a capacitor selection guide in the datasheet (Section 8.2.2) and in the application note SLVAU65. You can also use online capacitor selection tools or consult with a TI engineer for specific guidance.
The maximum power dissipation of the TPA4411RTJR is dependent on the ambient temperature, PCB layout, and thermal resistance. You can calculate the maximum power dissipation using the formula provided in the datasheet (Section 6.2). TI also provides a thermal calculator tool to help with this calculation.
To ensure EMC compliance, follow the layout and grounding guidelines provided in the datasheet (Section 8.3) and in the application note SLVAU65. Additionally, use shielding, filtering, and decoupling techniques to minimize electromagnetic interference (EMI). Consult with a TI engineer or an EMC expert for specific guidance.
TI provides recommended test and measurement procedures in the datasheet (Section 9) and in the application note SLVAU65. These procedures include setup, measurement, and analysis guidelines for parameters such as THD+N, frequency response, and power supply rejection ratio (PSRR).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA4411RTJR Overview

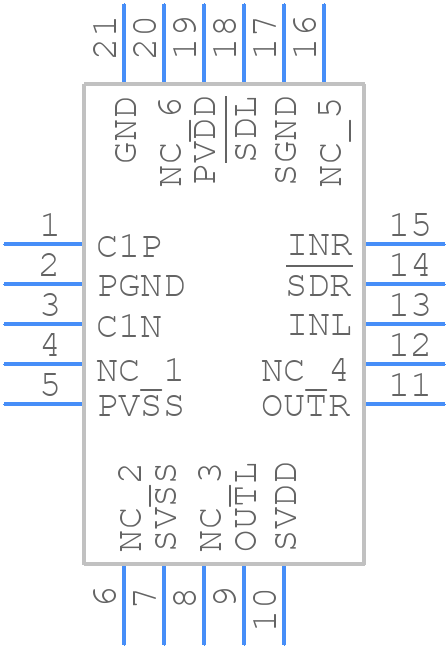

Use the download button to access the TPA4411RTJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA44,
or try a keyword search, such as Audio/Video Amplifiers
