Texas Instruments provides a recommended PCB layout in the TPA4411RTJT datasheet, but it's also recommended to follow the guidelines in the 'TPA4411RTJT PCB Layout Guidelines' application note (SLVAU62). This note provides detailed information on component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values for the TPA4411RTJT depend on the input signal frequency, amplitude, and source impedance. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. It's also recommended to use a capacitor with low equivalent series resistance (ESR) and high ripple current capability. For more information, refer to the 'TPA4411RTJT Input Capacitor Selection' application note (SLVAU63).
The maximum power dissipation of the TPA4411RTJT depends on the ambient temperature, PCB layout, and thermal management. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the ambient temperature and thermal resistance of the PCB. It's recommended to use thermal simulation tools or consult with a thermal expert to determine the maximum power dissipation for a specific application.
Troubleshooting common issues with the TPA4411RTJT requires a systematic approach. First, verify that the device is properly powered and that the input signal is within the recommended specifications. Check for proper PCB layout, component selection, and thermal management. Use oscilloscopes and spectrum analyzers to measure the output signal and identify any anomalies. Consult the 'TPA4411RTJT Troubleshooting Guide' application note (SLVAU64) for more detailed information and troubleshooting steps.
Yes, the TPA4411RTJT is qualified for automotive applications and meets the requirements of the AEC-Q100 standard. However, it's essential to ensure that the device is used within the recommended operating conditions and that the application meets the necessary safety and regulatory requirements. Consult the 'TPA4411RTJT Automotive Qualification' document (SLVAU65) for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA4411RTJT Overview

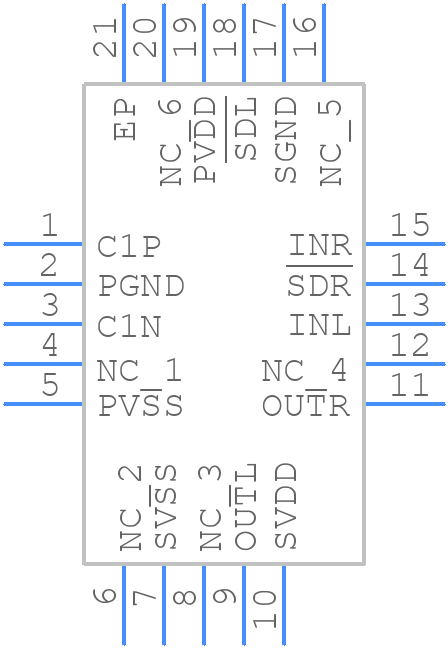

Use the download button to access the TPA4411RTJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA44,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
