A good PCB layout is crucial for the TPA4860DR. TI recommends a 4-layer PCB with a solid ground plane, and to keep the audio signal traces as short as possible. Additionally, it's essential to separate the analog and digital grounds to minimize noise and interference.
The choice of external components, such as capacitors, resistors, and inductors, depends on the specific application and desired performance. TI provides a recommended component list in the datasheet, but engineers should also consider factors like component tolerance, temperature range, and power handling when selecting components.
The TPA4860DR can handle a maximum power of 20W per channel into a 4Ω load. However, the actual power handling capability depends on the specific application, PCB layout, and thermal management. Engineers should ensure proper heat sinking and thermal design to prevent overheating and damage to the device.
The TPA4860DR has a built-in thermal protection feature that shuts down the device when it exceeds a certain temperature threshold. Engineers can also implement external thermal monitoring using thermistors or thermocouples to monitor the device temperature and take corrective action if necessary.
Common pitfalls to avoid include inadequate power supply decoupling, poor PCB layout, and insufficient thermal management. Engineers should also ensure that the device is operated within its recommended operating conditions and that the input signals are properly filtered and conditioned.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA4860DR Overview

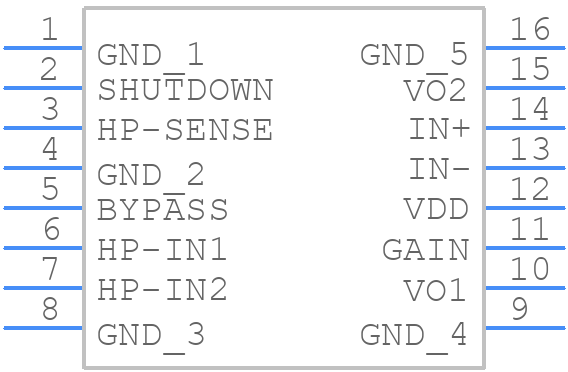

Use the download button to access the TPA4860DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA48,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
