TPA5050RSAR - Texas Instruments

Description: Stereo Digital Audio Delay Processor With I2C Control

Download TPA5050RSAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

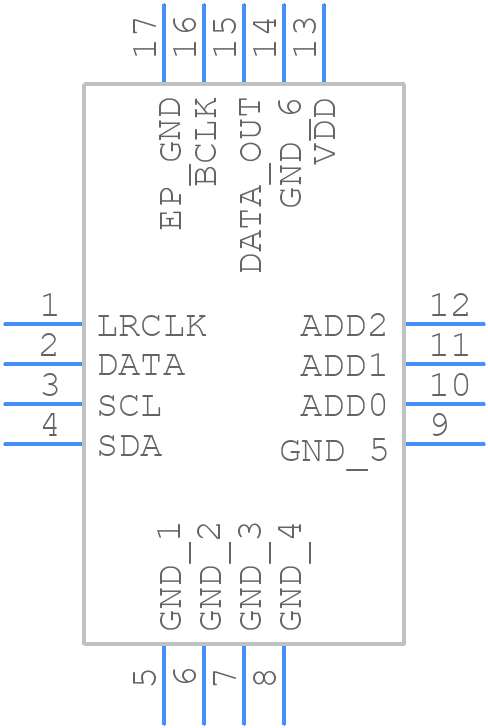

TPA5050RSAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA5050RSAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSA (S-PVQFN-N16)
click to zoom
3D Models
TPA5050RSAR - Texas Instruments - 3D model - Quad Flat No-Lead - RSA (S-PVQFN-N16)
click to zoom

TPA5050RSAR Details

  • Manufacturer Part Number:

    TPA5050RSAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN, LCC16,.16SQ,25

  • Pin Count:

    16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPA5050RSAR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the TPA5050RSAR. Ensure a symmetrical layout, keep the input and output traces short, and use a solid ground plane to minimize noise and electromagnetic interference (EMI).
  • The gain setting depends on the input signal level and the desired output power. Refer to the datasheet's gain setting table and calculate the gain required for your specific application. You can also use the TPA5050RSAR evaluation module to experiment with different gain settings.
  • The maximum power dissipation for the TPA5050RSAR is 2.5W. Ensure proper heat sinking and thermal management to prevent overheating, especially in high-power applications.
  • Use voltage regulators and overvoltage protection circuits to prevent damage from voltage spikes. Implement overcurrent protection using current-sensing resistors and a comparator or a dedicated overcurrent protection IC.
  • Yes, the TPA5050RSAR can be used in a bridged configuration to increase the output power. However, ensure proper synchronization of the input signals and take care to avoid phase mismatch, which can lead to reduced output power and increased distortion.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA5050RSAR Overview

Use the download button to access the TPA5050RSAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA50, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
