A good PCB layout is crucial for the TPA5050RSAT. Ensure that the input and output traces are separated, and the power supply decoupling capacitors are placed close to the device. Use a solid ground plane and avoid routing high-frequency signals under the device. TI provides a recommended PCB layout in the datasheet and application notes.
The gain setting depends on the input signal level and the desired output power. The TPA5050RSAT has a gain range of 20 dB to 40 dB. For low-input signals, use a higher gain setting, and for high-input signals, use a lower gain setting. Consult the datasheet and application notes for gain setting calculations and examples.
The maximum power dissipation of the TPA5050RSAT is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB and the operating temperature.
The TPA5050RSAT has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. For overvoltage protection, use a voltage regulator or a voltage clamp to limit the input voltage to the recommended maximum rating.
The recommended input and output coupling capacitor value depends on the frequency range of operation and the desired impedance matching. Typically, a 1-10 μF capacitor is used for input coupling, and a 10-100 nF capacitor is used for output coupling. Consult the datasheet and application notes for specific recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA5050RSAT Overview

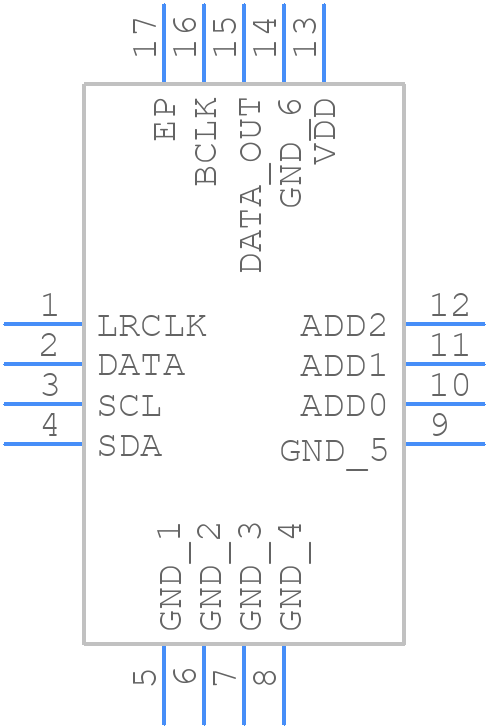

Use the download button to access the TPA5050RSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA50,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
