Texas Instruments provides a recommended PCB layout in the TPA5051 evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input voltage, output voltage, and desired ripple current. A general guideline is to use a minimum of 10uF ceramic capacitors with a voltage rating of at least 2x the input voltage. However, it's recommended to consult the application notes and simulation tools provided by Texas Instruments to determine the optimal capacitor values for a specific design.
The maximum ambient temperature rating for the TPA5051RSATG4 is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to consider the thermal management and heat dissipation in the system design to ensure the device operates within the recommended temperature range.
The TPA5051RSATG4 is rated for a maximum input voltage of 24V. While it's possible to use it in a high-voltage application, it's not recommended as it may exceed the device's absolute maximum ratings. Instead, consider using a different device or a voltage regulator with a higher voltage rating.
Texas Instruments provides a troubleshooting guide in the TPA5051 datasheet and application notes, which covers common issues and their possible causes. Additionally, engineers can use simulation tools and oscilloscope measurements to identify and debug issues related to the device's operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA5051RSATG4 Overview

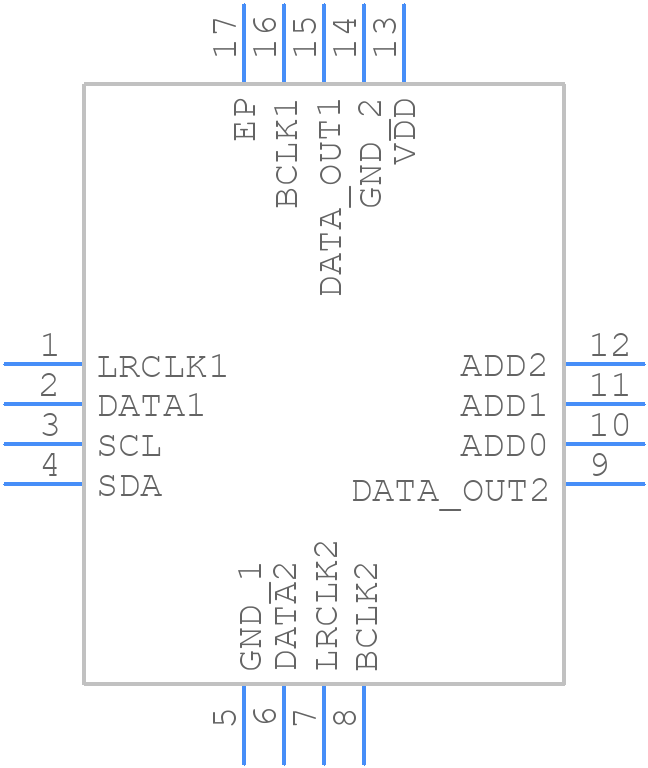

Use the download button to access the TPA5051RSATG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA50,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
