TPA6020A2RGWR - Texas Instruments

Description: Stereo, Fully Differential Class-AB Audio Amplifier

Download TPA6020A2RGWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

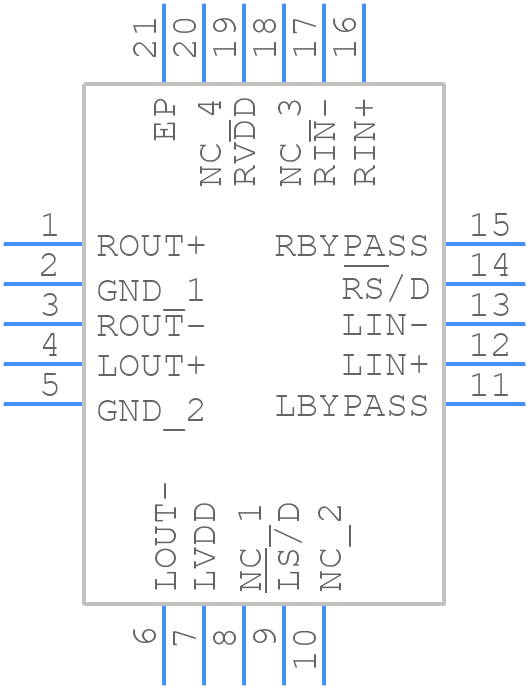

TPA6020A2RGWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6020A2RGWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGW(S-PVQFN-N20)_1
click to zoom
3D Models
TPA6020A2RGWR - Texas Instruments - 3D model - Quad Flat No-Lead - RGW(S-PVQFN-N20)_1
click to zoom

TPA6020A2RGWR Details

  • Manufacturer Part Number:

    TPA6020A2RGWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Noise Figure-Nom:

    104 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.8 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPA6020A2RGWR Frequently Asked Questions (FAQs)

  • According to TI's application notes, a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed close to the power pins, are recommended for power supply decoupling.
  • The gain setting depends on the input signal level and the desired output power. TI recommends using the gain equation provided in the datasheet to calculate the optimal gain setting for your specific application.
  • The maximum power dissipation of the TPA6020A2RGWR is 2.5W. However, this value can be affected by the ambient temperature, PCB layout, and other factors. TI recommends following the thermal design guidelines in the datasheet to ensure reliable operation.
  • Yes, the TPA6020A2RGWR can be used in a bridged configuration to increase the output power. However, TI recommends following the specific bridging configuration guidelines in the datasheet to ensure proper operation and to avoid damage to the device.
  • TI recommends using voltage surge protectors and undervoltage protection circuits to protect the TPA6020A2RGWR from overvoltage and undervoltage conditions. The specific protection circuitry required will depend on the application and the voltage supply used.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA6020A2RGWR Overview

Use the download button to access the TPA6020A2RGWR schematic symbol, PCB footprint, and 3D model.
