Texas Instruments provides a recommended PCB layout in the TPA6100A2DGKR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize noise.
The gain setting depends on the input signal level and the desired output power. The TPA6100A2DGKR has a gain range of 10dB to 30dB. A higher gain setting can provide more output power, but may also increase noise and distortion. A lower gain setting can provide a cleaner signal, but may not provide enough output power. Consult the datasheet and application notes for guidance on selecting the optimal gain setting for your specific application.
The maximum power dissipation of the TPA6100A2DGKR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at an ambient temperature of 25°C. However, this can be derated to 1.5W at an ambient temperature of 85°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
The TPA6100A2DGKR has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Additionally, the device has overvoltage protection up to 12V, but it's recommended to use external protection circuitry, such as TVS diodes or voltage regulators, to ensure the device is protected from voltage transients and surges.
The recommended input and output coupling capacitor value depends on the specific application and the frequency range of interest. A general guideline is to use a capacitor value between 1uF to 10uF for input and output coupling. However, it's essential to consult the datasheet and application notes for specific guidance on capacitor selection and to ensure that the capacitor value does not affect the device's frequency response or stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6100A2DGKR Overview

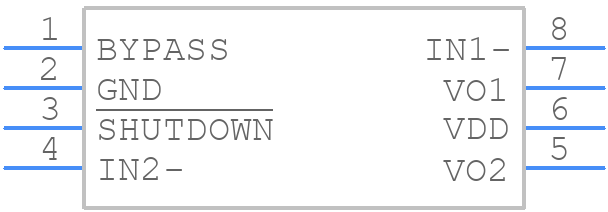

Use the download button to access the TPA6100A2DGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
