TPA6101A2DGKR - Texas Instruments

Description: 50-mW Ultra Low-Voltage, Stereo Headphone Audio Amplifier with Fixed Gain (2dB)

Download TPA6101A2DGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

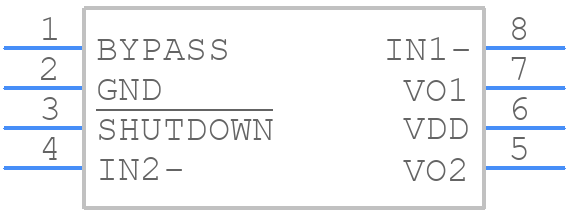

Symbol
TPA6101A2DGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6101A2DGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPA6101A2DGKR
click to zoom
3D Models
TPA6101A2DGKR - Texas Instruments - 3D model - Small Outline Packages - TPA6101A2DGKR
click to zoom

TPA6101A2DGKR Details

  • Manufacturer Part Number:

    TPA6101A2DGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    2 dB

  • Harmonic Distortion:

    0.1%

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.05 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPA6101A2DGKR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPA6101A2DGKR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize noise.
  • The gain setting depends on the input signal level and the desired output power. The TPA6101A2DGKR has a gain range of 10dB to 30dB. Consult the datasheet's gain setting table and application notes to determine the optimal gain setting for your specific use case.
  • The maximum power dissipation of the TPA6101A2DGKR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's essential to perform thermal calculations and consider heat sinking to ensure reliable operation.
  • Yes, the TPA6101A2DGKR is a mono audio amplifier, but it can be used in stereo audio applications by using two devices, one for each channel. Ensure that the devices are properly synchronized and that the PCB layout is designed to minimize crosstalk and noise.
  • The recommended input coupling capacitor value depends on the input signal frequency and impedance. A general guideline is to use a capacitor value between 1uF to 10uF, with a voltage rating that matches the input signal amplitude. Consult the datasheet and application notes for more specific guidance.
