SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
3 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6110A2DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA6110A2DGNG4.
The gain setting for the TPA6110A2DGNG4 depends on the specific application requirements. TI provides a gain calculation formula in the datasheet, which takes into account the input impedance, output impedance, and desired gain. Engineers can use this formula to determine the optimal gain setting for their design.
The maximum power dissipation for the TPA6110A2DGNG4 is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, which takes into account these factors. Engineers should ensure that the power dissipation does not exceed the maximum rating to prevent overheating and damage to the device.
To protect the TPA6110A2DGNG4 from ESD and overvoltage, engineers can use external protection components such as TVS diodes, zener diodes, and resistors. TI also recommends following proper PCB design and layout practices, such as using a ground plane and minimizing trace lengths, to reduce the risk of ESD and overvoltage damage.
The recommended input and output coupling capacitor value for the TPA6110A2DGNG4 depends on the specific application requirements and the frequency response desired. TI provides general guidelines for capacitor selection in the datasheet, but engineers may need to experiment with different values to achieve optimal performance in their specific design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6110A2DGNG4 Overview

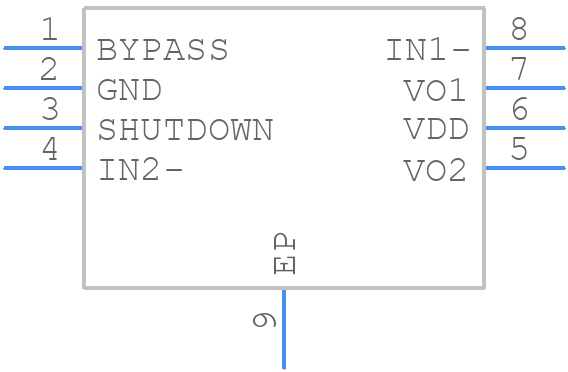

Use the download button to access the TPA6110A2DGNG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
