SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
3 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6112A2DGQRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA6112A2 application note (SLVAU65). It's essential to follow this layout to minimize electromagnetic interference (EMI) and ensure optimal performance.
The input capacitor values depend on the input signal frequency and amplitude. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the TPA6112A2 datasheet.
The maximum power dissipation of the TPA6112A2DGQRG4 is 2.5W. To ensure it doesn't overheat, use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. You can also use thermal simulation tools to estimate the junction temperature and optimize the design accordingly.
Yes, the TPA6112A2DGQRG4 can be used in a stereo audio application. To configure it, you'll need to use two devices, one for each channel. Connect the input signals to the respective input pins, and use a common ground and power supply for both devices. Ensure that the gain settings and output filters are identical for both channels to maintain stereo imaging.
To troubleshoot common issues, start by checking the input signal quality, output filter design, and PCB layout. Ensure that the device is properly biased, and the power supply is clean and stable. Use an oscilloscope to measure the output signal and identify any anomalies. TI also provides a troubleshooting guide in the TPA6112A2 application note (SLVAU65).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6112A2DGQRG4 Overview

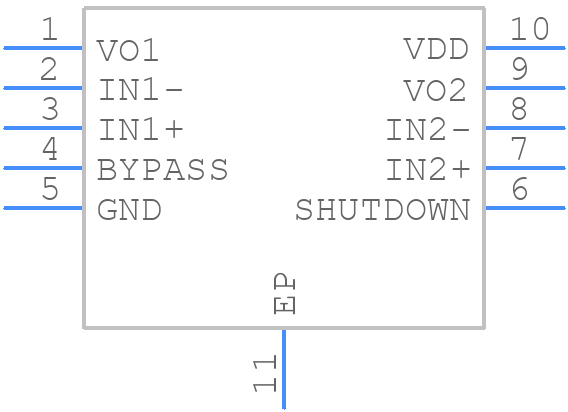

Use the download button to access the TPA6112A2DGQRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
