Texas Instruments provides a recommended PCB layout in the TPA6135A2 application note (SLVAU65). It includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA6135A2RTER depends on the input signal level and the desired output power. Texas Instruments provides a gain setting calculator in the TPA6135A2 datasheet, which can help determine the optimal gain setting based on the input signal level and output power requirements.
The maximum power dissipation of the TPA6135A2RTER is 2.5W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to follow the recommended PCB layout guidelines. Additionally, the device should be operated within the recommended operating temperature range of -40°C to 85°C.
Yes, the TPA6135A2RTER is a stereo audio amplifier, and it can be used in stereo audio applications. Each channel of the amplifier is independent, allowing for separate gain control and input signals for the left and right channels.
To filter out noise and EMI, it's recommended to use a low-pass filter or a band-pass filter in the audio circuit. The TPA6135A2RTER has a built-in high-pass filter, but additional filtering may be necessary depending on the specific application requirements. Texas Instruments provides guidance on filtering and noise reduction in the TPA6135A2 application note (SLVAU65).
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA6135A2RTER Overview

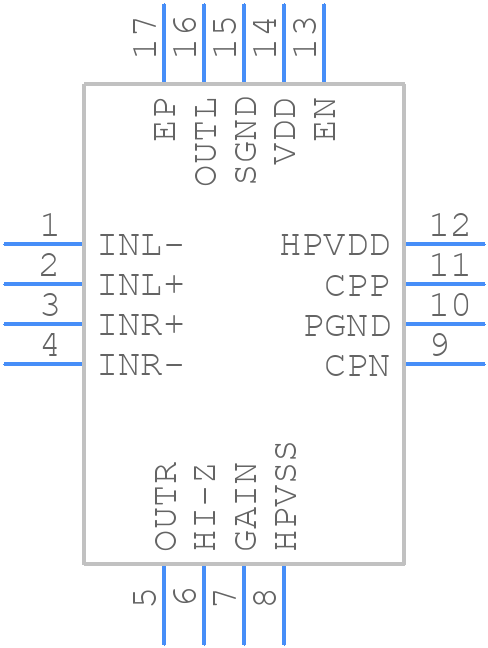

Use the download button to access the TPA6135A2RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
