Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA6136A2YFFR.
The gain setting for the TPA6136A2YFFR depends on the specific application requirements. TI provides a gain calculation formula in the datasheet, which takes into account the input signal level, output power, and desired gain. Engineers can use this formula to determine the optimal gain setting for their design.
The maximum power dissipation for the TPA6136A2YFFR is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, which engineers can use to determine the maximum power dissipation for their specific design.
To ensure EMI compliance with the TPA6136A2YFFR, engineers should follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. TI also provides EMI compliance guidelines and test results in the datasheet and application notes.
The recommended input capacitor value for the TPA6136A2YFFR depends on the specific application requirements and the input signal frequency. TI provides guidelines for input capacitor selection in the datasheet, which include using a capacitor with a value between 1uF and 10uF, and a voltage rating that matches the input signal voltage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA6136A2YFFR Overview

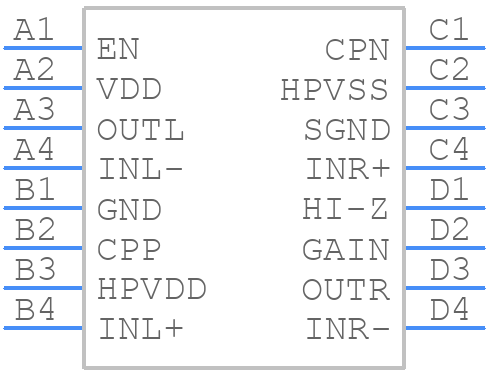

Use the download button to access the TPA6136A2YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
