Texas Instruments provides a recommended PCB layout in the TPA6136A2YFFT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA6136A2YFFT depends on the input signal level and the desired output power. Texas Instruments provides a gain setting calculator tool to help engineers select the correct gain setting based on their specific application requirements.
The maximum power dissipation of the TPA6136A2YFFT is dependent on the ambient temperature and the thermal resistance of the PCB. Engineers should ensure proper thermal management by using a heat sink, thermal vias, and a thermally conductive PCB material to keep the device within its recommended operating temperature range.
To filter out noise and EMI, engineers can use external filters, such as LC filters or ferrite beads, in conjunction with the TPA6136A2YFFT's internal filters. Additionally, proper PCB layout and shielding can help minimize EMI and noise coupling into the audio signal.
The recommended input and output coupling capacitor value for the TPA6136A2YFFT depends on the specific application requirements, such as the input signal frequency and amplitude. A general guideline is to use a capacitor value between 1uF to 10uF, but Texas Instruments recommends consulting the application notes and evaluation module documentation for more specific guidance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA6136A2YFFT Overview

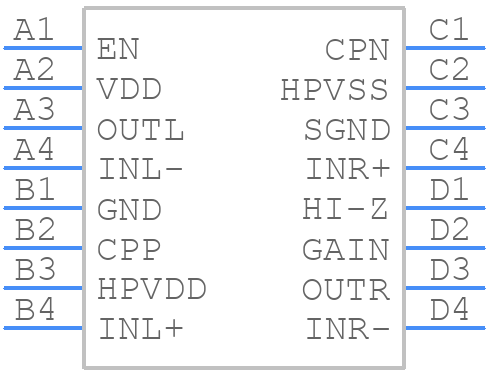

Use the download button to access the TPA6136A2YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
