Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA6203A1NMBR.
The gain setting of the TPA6203A1NMBR depends on the specific application requirements. TI recommends using the gain calculation formula provided in the datasheet to determine the optimal gain setting. Additionally, the TI Audio Amplifier Gain Calculator tool can be used to simplify the gain calculation process.
The TPA6203A1NMBR has a high power dissipation capability, and thermal management is critical to ensure reliable operation. TI recommends using a heat sink, thermal vias, and thermal pads to dissipate heat. The datasheet provides thermal resistance and power dissipation data to aid in thermal design.
The TPA6203A1NMBR has built-in EMI filtering, but additional filtering may be required depending on the application. TI recommends using a combination of passive and active filtering techniques, such as RC filters, ferrite beads, and shielding, to minimize noise and EMI.
TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a minimum total capacitance of 10uF. The datasheet provides guidelines for power supply decoupling and noise reduction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6203A1NMBR Overview

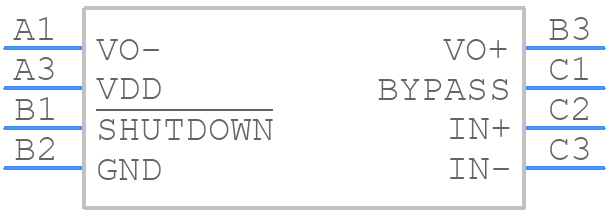

Use the download button to access the TPA6203A1NMBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA62,
or try a keyword search, such as Audio/Video Amplifiers
