SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
2 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6205A1DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA6205A1DGNRG4.
The gain setting of the TPA6205A1DGNRG4 depends on the specific application requirements. TI recommends using the gain calculation formula provided in the datasheet to determine the optimal gain setting. Additionally, the TI Audio Amplifier Quick Start Guide provides a step-by-step process for selecting the optimal gain setting.
The maximum power dissipation of the TPA6205A1DGNRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. TI recommends using the thermal design guide and the power dissipation calculator provided in the datasheet to determine the maximum power dissipation for a specific application.
TI recommends using ESD protection devices, such as TVS diodes, and overvoltage protection devices, such as voltage regulators, to protect the TPA6205A1DGNRG4 from ESD and overvoltage events. Additionally, proper PCB design and layout practices, such as using guard rings and shielding, can also help to reduce the risk of ESD and overvoltage damage.
The recommended input and output coupling capacitor value for the TPA6205A1DGNRG4 depends on the specific application requirements. TI recommends using a minimum of 1uF for the input coupling capacitor and a minimum of 10uF for the output coupling capacitor. However, the optimal capacitor value may vary depending on the specific application requirements and the desired frequency response.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6205A1DGNRG4 Overview

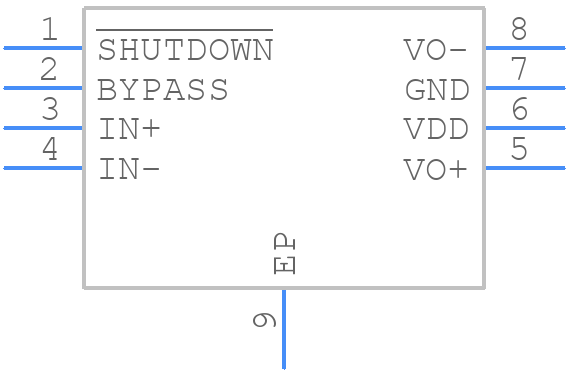

Use the download button to access the TPA6205A1DGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA62,
or try a keyword search, such as Audio/Video Amplifiers
