SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6211A1DGNR Frequently Asked Questions (FAQs)
A good PCB layout for the TPA6211A1DGNR involves keeping the audio signal traces away from the power supply traces, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, using a shielded enclosure and minimizing the length of the audio signal traces can help reduce EMI.
To optimize the gain setting, you need to consider the input signal level, the desired output power, and the impedance of the load. A good starting point is to set the gain to 20 dB (default) and then adjust it based on your specific application requirements. You can use the gain equation provided in the datasheet to calculate the optimal gain setting.
The TPA6211A1DGNR has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To ensure reliable operation, make sure to provide adequate heat sinking, use a thermal pad or heat sink, and keep the device away from other heat sources. You should also follow the recommended PCB layout and thermal design guidelines provided in the datasheet.
To filter out noise and hum, you can use a combination of passive and active filtering techniques. Use a low-pass filter at the input stage to remove high-frequency noise, and a high-pass filter at the output stage to remove low-frequency hum. Additionally, consider using a noise-reducing capacitor at the input stage and a ferrite bead or common-mode choke to filter out electromagnetic interference.
The TPA6211A1DGNR has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use an anti-static wrist strap or mat when handling the device, and ensure that your PCB assembly process follows ESD-safe guidelines. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6211A1DGNR Overview

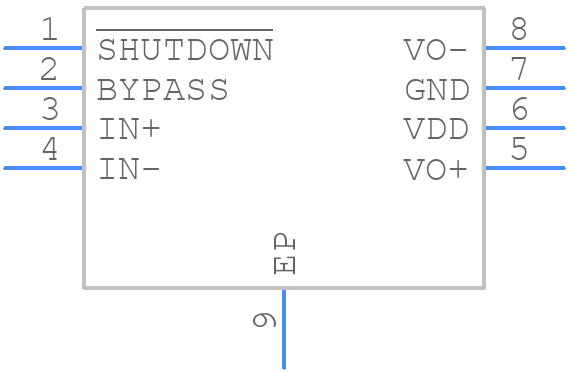

Use the download button to access the TPA6211A1DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA62,
or try a keyword search, such as Audio/Video Amplifiers
