TPA6211A1DRBR - Texas Instruments

Description: 3.1-W Mono, Fully Differential, Class-AB Audio Amplifier

Download TPA6211A1DRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

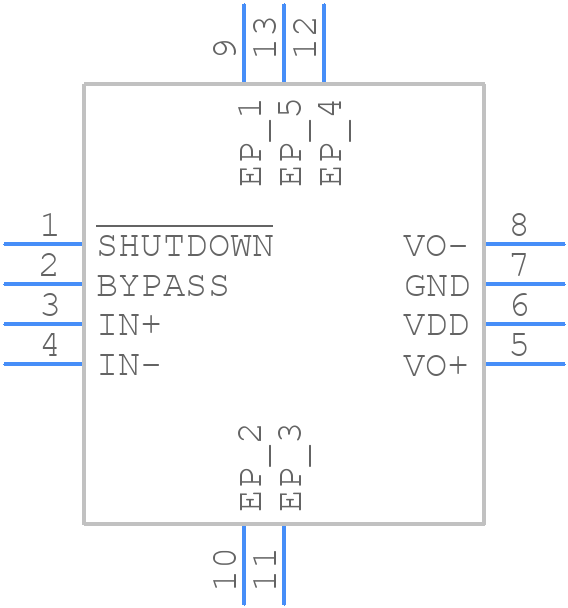

TPA6211A1DRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6211A1DRBR - Texas Instruments PCB footprint - Other - Other - DRB0008A
click to zoom
3D Models
TPA6211A1DRBR - Texas Instruments - 3D model - Other - DRB0008A
click to zoom

TPA6211A1DRBR Details

  • Manufacturer Part Number:

    TPA6211A1DRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Noise Figure-Nom:

    105 dB

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPA6211A1DRBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, which includes a suggested component placement and routing guide to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The gain setting depends on the input signal level and the desired output power. The TPA6211A1DRBR has a fixed gain of 20 dB, but you can adjust the gain by adding external resistors. Refer to the datasheet for gain calculation formulas and examples.
  • The maximum power dissipation of the TPA6211A1DRBR is 2.5 W. However, this value can be affected by the ambient temperature, PCB layout, and thermal management. Ensure proper thermal design and heat sinking to prevent overheating.
  • Yes, the TPA6211A1DRBR can be used in a bridged configuration to increase the output power. However, this requires additional external components and careful PCB design to ensure proper operation and minimize distortion.
  • The TPA6211A1DRBR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. Additionally, you can add external voltage regulators and protection circuits to ensure the device operates within the recommended voltage range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA6211A1DRBR Overview

Use the download button to access the TPA6211A1DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA62, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
