SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
2.5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA721DGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA721DGN datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal thermal performance.
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose a capacitor value that is at least 10 times the input impedance of the amplifier. For example, if the input impedance is 1 kΩ, a 10 μF capacitor would be a good starting point. Additionally, consider the capacitor's equivalent series resistance (ESR) and self-resonant frequency to ensure it doesn't affect the amplifier's performance.
The maximum power dissipation of the TPA721DGN is dependent on the ambient temperature, package type, and thermal resistance. The datasheet provides a power dissipation calculation formula: Pd = (Vcc x Icc) + (Vout x Iout). Engineers should consider the maximum output power, supply voltage, and quiescent current to calculate the power dissipation and ensure the device operates within its thermal limits.
To protect the TPA721DGN from overvoltage and overcurrent conditions, engineers can implement external protection circuits, such as voltage regulators, zener diodes, or current-limiting resistors. Additionally, the device has built-in overcurrent protection and thermal shutdown features that can be enabled through external resistors and capacitors. It's essential to follow the datasheet's guidelines for protection circuit design and component selection.
For high-power applications, a heatsink is essential to dissipate heat generated by the TPA721DGN. Texas Instruments recommends a heatsink design with a thermal resistance of less than 10°C/W. Engineers should consider the heatsink's material, size, and shape, as well as the thermal interface material (TIM) used between the device and heatsink. A well-designed heatsink can help reduce the device's junction temperature and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA721DGN Overview

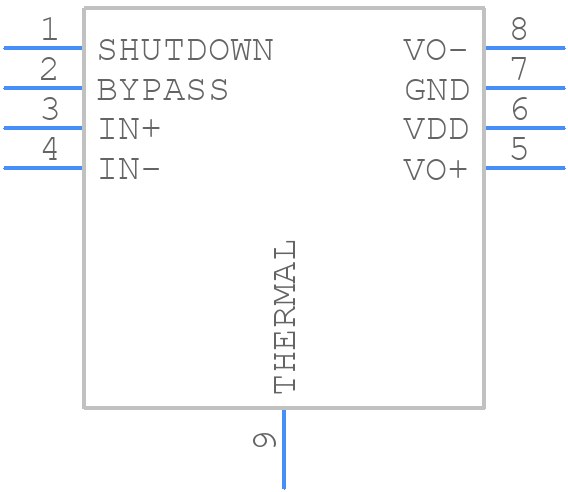

Use the download button to access the TPA721DGN schematic symbol, PCB footprint, and 3D model.
