Texas Instruments provides a recommended PCB layout in the TPA731DR datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and electromagnetic compatibility (EMC).
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input signal amplitude. It's also important to consider the capacitor's equivalent series resistance (ESR) and ensure it's low enough to minimize signal attenuation.
The maximum power dissipation of the TPA731DR depends on the ambient temperature, package type, and thermal management. According to the datasheet, the maximum power dissipation is 2.5W for the DRC package and 1.5W for the DSBGA package. However, it's essential to perform thermal calculations and ensure proper heat sinking to prevent overheating and ensure reliable operation.
Yes, the TPA731DR can be used as a line driver, but it's essential to consider the output impedance, gain, and frequency response. The TPA731DR has a relatively high output impedance (around 10 ohms), which may not be suitable for long cable runs or low-impedance loads. Additionally, the gain and frequency response may need to be adjusted using external components to meet the specific requirements of the application.
To protect the TPA731DR from electrostatic discharge (ESD) and overvoltage, it's essential to implement proper ESD protection measures, such as using ESD-protection diodes, TVS diodes, or surge protectors. Additionally, ensure that the power supply voltage does not exceed the maximum rating of 5.5V, and consider using voltage regulators or overvoltage protection circuits to prevent damage from voltage transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA731DR Overview

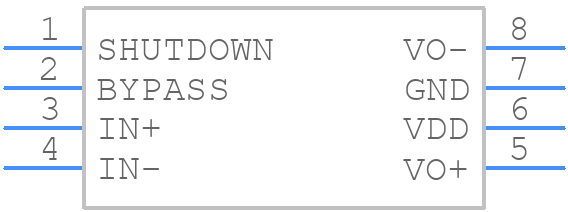

Use the download button to access the TPA731DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA73,
or try a keyword search, such as Audio/Video Amplifiers
