DEVICE FEATURES SHUTDOWN MODE FOR POWER SENSITIVE APPLICATIONS
Bandwidth-Nom:
20 kHz
Consumer IC Type:
AUDIO AMPLIFIER
Harmonic Distortion:
0.5%
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Power-Nom:
0.7 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max:
2.5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
TPA751D Frequently Asked Questions (FAQs)
The recommended PCB layout for the TPA751D involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. TI provides a reference design and layout guidelines in the TPA751D datasheet and application notes.
The gain setting for the TPA751D depends on the specific application requirements. The device has three gain settings: 6 dB, 12 dB, and 18 dB. The gain setting should be chosen based on the input signal level, output power requirements, and noise tolerance. A higher gain setting can provide more output power, but may also increase noise and distortion. TI provides a gain selection guide in the TPA751D datasheet.
The maximum power dissipation of the TPA751D depends on the ambient temperature and the thermal resistance of the PCB. The device has a maximum junction temperature of 150°C. The power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). TI provides a thermal design guide and power dissipation calculations in the TPA751D datasheet.
To filter out EMI in a design using the TPA751D, it is recommended to use a common-mode filter, such as a ferrite bead or a common-mode choke, on the input and output lines. Additionally, a shielded enclosure and a solid ground plane can help to reduce EMI. TI provides EMI reduction guidelines and filter design recommendations in the TPA751D datasheet and application notes.
The minimum supply voltage for the TPA751D is 4.5 V, and the maximum supply voltage is 18 V. The device is designed to operate from a single supply voltage, and the output voltage swing is dependent on the supply voltage. TI recommends using a regulated power supply to ensure stable operation and to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA751D Overview

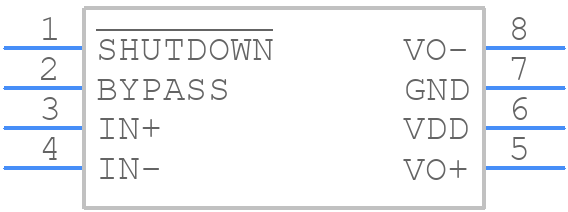

Use the download button to access the TPA751D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA75,
or try a keyword search, such as Audio/Video Amplifiers
