SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.35 mA
Supply Voltage-Max (Vsup):
7 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.5 mm
TPD2S703QDSKRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for TPD2S703QDSKRQ1 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure EMC with TPD2S703QDSKRQ1, follow proper PCB layout and shielding guidelines, use a common-mode choke or ferrite bead on the input, and consider adding EMI filters or shielding cans around the device.
The maximum operating temperature range for TPD2S703QDSKRQ1 is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider thermal management and heat dissipation in the system design.
Yes, TPD2S703QDSKRQ1 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified process. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific application requirements.
To troubleshoot issues with TPD2S703QDSKRQ1, start by reviewing the datasheet and application notes, checking the PCB layout and component placement, and verifying the input and output signals. Use oscilloscopes or logic analyzers to debug the issue, and consider consulting TI's technical support or application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD2S703QDSKRQ1 Overview

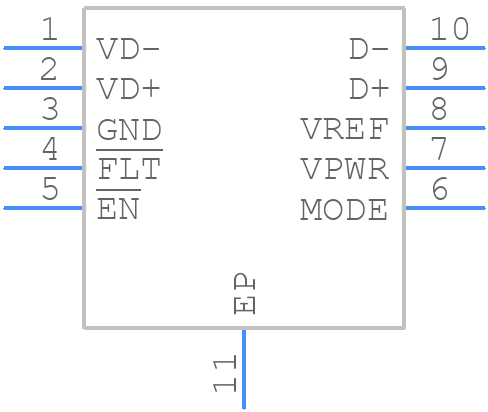

Use the download button to access the TPD2S703QDSKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD2S,
or try a keyword search, such as Power Management Circuits
