Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TPD3S713QRVCRQ1 requires a 3.3V or 5V power supply, and it's essential to ensure the power supply is clean and stable. A decoupling capacitor (e.g., 10uF) should be placed close to the device's power pins. Additionally, the device's bias pins (e.g., VREF) should be connected to a stable voltage reference, such as a voltage regulator or a voltage divider.
The TPD3S713QRVCRQ1 is a high-speed device that can support data rates up to 3.2 Gbps. However, the actual data rate may be limited by the system's signal integrity, PCB layout, and other factors. It's essential to perform signal integrity analysis and simulation to ensure the device can operate at the desired data rate.
To troubleshoot issues with the TPD3S713QRVCRQ1, start by reviewing the device's datasheet and application notes. Check the PCB layout, power supply, and signal integrity. Use oscilloscopes and logic analyzers to debug the signal waveforms and timing. If the issue persists, contact Texas Instruments' technical support or consult with a experienced engineer.
The TPD3S713QRVCRQ1 is rated for operation up to 85°C (junction temperature). However, it's essential to ensure the device is properly cooled and the system is designed to operate within the specified temperature range. Exceeding the recommended temperature range may affect the device's performance, reliability, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD3S713QRVCRQ1 Overview

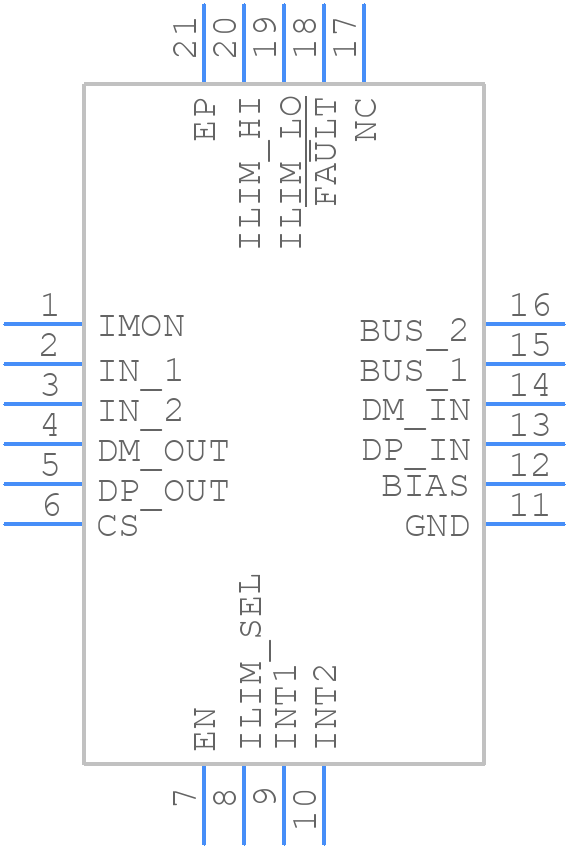

Use the download button to access the TPD3S713QRVCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD3S,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
