TPD3S716QDBQRQ1 - Texas Instruments

Description: Automotive USB 2.0 Interface Protection w/ Adjustable Current Limit and Short-to-Battery Protection

Download TPD3S716QDBQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

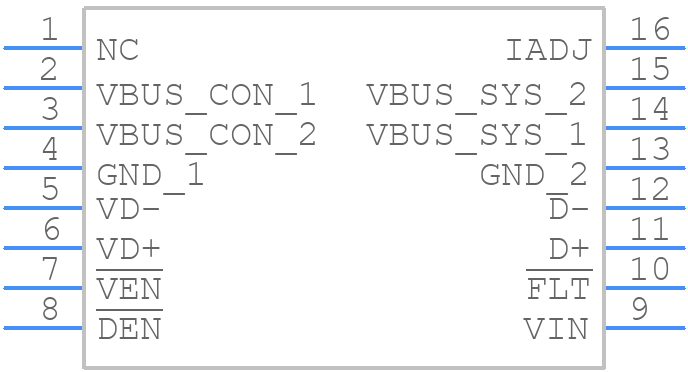

TPD3S716QDBQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD3S716QDBQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A_
click to zoom
3D Models
TPD3S716QDBQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A_
click to zoom

TPD3S716QDBQRQ1 Details

  • Manufacturer Part Number:

    TPD3S716QDBQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.6,2.7V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TPD3S716QDBQRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPD3S716QDBQRQ1 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common mode filter or a ferrite bead to reduce EMI.
  • To ensure proper power and biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, make sure to decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
  • The maximum current rating of the TPD3S716QDBQRQ1 is 2.5A per channel, but it's recommended to derate the current to 1.5A per channel for reliable operation.
  • To protect the TPD3S716QDBQRQ1 from overvoltage and overcurrent, use a voltage regulator to regulate the input voltage, and add a current limiting resistor or a fuse in series with the output to prevent overcurrent.
  • The recommended operating temperature range for the TPD3S716QDBQRQ1 is -40°C to 85°C, but it's recommended to derate the operating temperature to 70°C for reliable operation.
