TPD6S300RUKR - Texas Instruments

Description: USB Type-C™ Port Protector: Short-to-VBUS Overvoltage and IEC ESD Protection

Download TPD6S300RUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

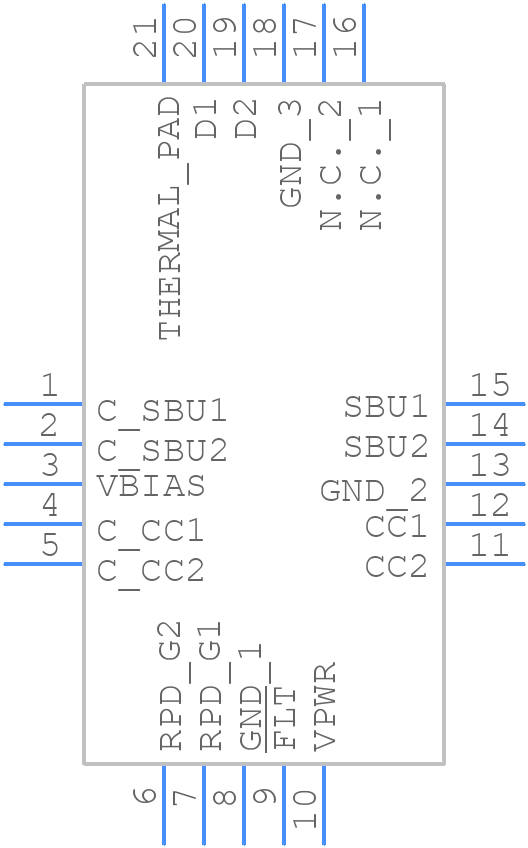

TPD6S300RUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD6S300RUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
TPD6S300RUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

TPD6S300RUKR Details

  • Manufacturer Part Number:

    TPD6S300RUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.135 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPD6S300RUKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPD6S300RUKR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the protection diodes. Additionally, it's recommended to use a common ground point for the device and the protection diodes.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.5V and 5.5V, and ensure the input voltage is within the recommended operating range. Also, make sure the device is properly decoupled with a 0.1uF capacitor between VCC and GND.
  • The TPD6S300RUKR can handle surge currents up to 30A, but it's recommended to limit the surge current to 10A or less to ensure reliable operation and minimize the risk of device damage.
  • The external resistors (R1 and R2) should be chosen based on the desired clamping voltage and the input voltage range. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
  • Yes, the TPD6S300RUKR is rated for operation up to 125°C, but it's essential to ensure proper thermal management and consider the device's power dissipation and thermal resistance when designing the system.
