TPD8S300RUKR - Texas Instruments

Description: USB Type-C™ Port Protector: Short-to-VBUS Overvoltage and IEC ESD Protection

Download TPD8S300RUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

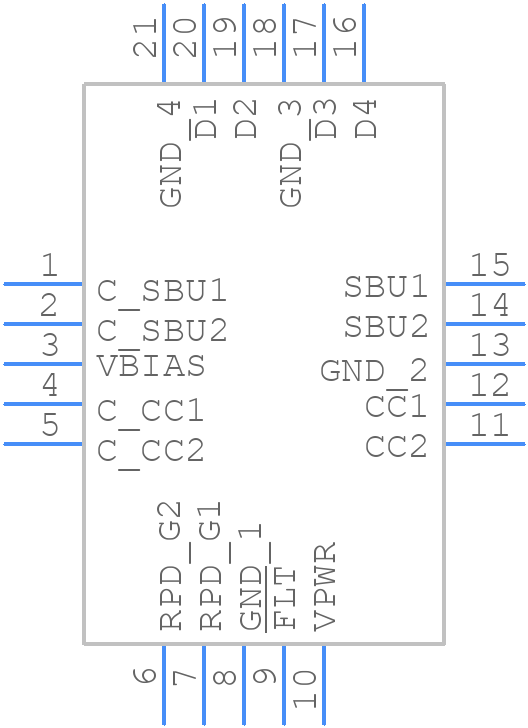

Symbol
TPD8S300RUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD8S300RUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
TPD8S300RUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

TPD8S300RUKR Details

  • Manufacturer Part Number:

    TPD8S300RUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPD8S300RUKR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the TPD8S300RUKR. Additionally, it's essential to minimize the distance between the device and the TVS diodes, and to use a common ground point for all components.
  • The TPD8S300RUKR requires a 3.3V or 5V power supply, and a bias voltage of 1.8V to 5.5V. Ensure the power supply is stable and decoupled with capacitors to minimize noise and ripple. Also, use a voltage regulator or a low-dropout regulator to maintain a stable bias voltage.
  • The TPD8S300RUKR is designed to handle surge currents up to 30A, but this may vary depending on the specific application and PCB layout. It's essential to follow the recommended PCB layout and component selection to ensure the device can handle the expected surge currents.
  • Select TVS diodes with a standoff voltage rating that matches the maximum voltage of your system. Ensure the TVS diodes have a sufficient power rating to handle the expected surge energy. Texas Instruments recommends using TVS diodes with a minimum power rating of 400W.
  • The TPD8S300RUKR is designed to operate within a temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected by extreme temperatures. Ensure proper thermal management and heat dissipation in your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD8S300RUKR Overview

Use the download button to access the TPD8S300RUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD8S, or try a keyword search, such as Power Management Circuits
