TPIC1021DR - Texas Instruments

Description: Texas Instruments TPIC1021DR, LIN Transceiver, 8-Pin SOIC

Download TPIC1021DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

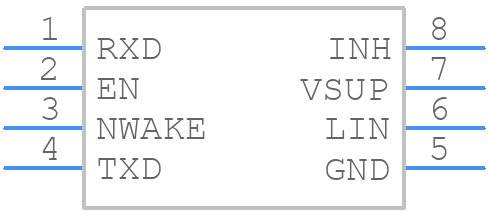

TPIC1021DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPIC1021DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TPIC1021DR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TPIC1021DR Details

  • Manufacturer Part Number:

    TPIC1021DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPIC1021DR Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPIC1021DR is 1A per channel, with a total current limit of 2A for both channels combined.
  • To ensure SOA compliance, ensure that the device operates within the recommended voltage and current limits, and that the thermal dissipation is adequate to prevent overheating. Refer to the datasheet for specific guidelines.
  • Yes, the TPIC1021DR can be used as a high-side switch, but it requires an external voltage regulator to provide a stable voltage supply to the device. Additionally, ensure that the device is properly biased and that the output voltage is within the recommended range.
  • Use external voltage protection devices such as TVS diodes or voltage regulators to protect the TPIC1021DR from overvoltage and undervoltage conditions. Additionally, ensure that the device is properly biased and that the input voltage is within the recommended range.
  • Follow the recommended PCB layout guidelines in the datasheet, and ensure that the device is mounted on a thermally conductive material such as a heat sink or a metal core PCB. Additionally, ensure that the device is properly soldered and that the thermal interface material is adequate.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPIC1021DR Overview

Use the download button to access the TPIC1021DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
