TPL5100DGSR - Texas Instruments

Description: Nano Power Programmable Timer with Power Gating Functionality

Download TPL5100DGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

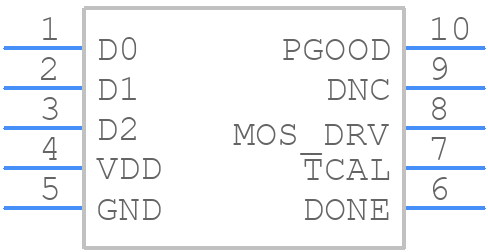

TPL5100DGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPL5100DGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
TPL5100DGSR - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

TPL5100DGSR Details

  • Manufacturer Part Number:

    TPL5100DGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.00005 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPL5100DGSR Frequently Asked Questions (FAQs)

  • It is recommended to place the TPL5100DGSR close to the battery and to use a star-ground configuration to minimize noise and EMI. The device should be placed on a solid ground plane, and the input and output capacitors should be placed as close as possible to the device.
  • To ensure stability and reliability, make sure to follow the recommended operating conditions, including input voltage, output voltage, and output current. Also, ensure that the device is properly decoupled, and the input and output capacitors are of high quality and suitable for the application.
  • The TPL5100DGSR can handle input voltages up to 18V, but it is recommended to operate within the recommended input voltage range of 2.7V to 12V for optimal performance and reliability.
  • The TPL5100DGSR is rated for operation up to 85°C, but it is recommended to derate the device for high-temperature applications. Consult the datasheet and application notes for guidance on high-temperature operation.
  • The output voltage of the TPL5100DGSR is determined by the resistor divider network connected to the FB pin. Use the formula provided in the datasheet to calculate the output voltage based on the resistor values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPL5100DGSR Overview

Use the download button to access the TPL5100DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPL51, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
