TPLD801DRLR - Texas Instruments

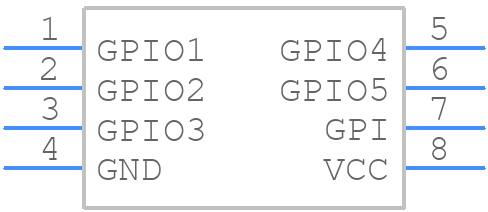

TPLD801DRLR Details

• Manufacturer Part Number:

  TPLD801DRLR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Architecture:

  PLA-TYPE

• Clock Frequency-Max:

  12 MHz

• In-System Programmable:

  NO

• JESD-30 Code:

  R-PDFP-F8

• JTAG BST:

  NO

• Length:

  2.1 mm

• Moisture Sensitivity Level:

  1

• Number of Dedicated Inputs:

  1

• Number of I/O Lines:

  6

• Number of Inputs:

  6

• Number of Macro Cells:

  10

• Number of Outputs:

  5

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1 DEDICATED INPUTS, 5 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSOF

• Package Equivalence Code:

  FL8,.047,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  OT PLD

• Seated Height-Max:

  0.6 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Form:

  FLAT

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.2 mm
